性能
| 主板元件 |
Mini ITX |
| 超频功能 |
Good overclocking |
| 处理器插座 |
LGA 1151 (Socket H4) |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek HD Audio |
| 组件应用 |
Mini PC |
内存参数
| 可支持内存时钟速度 |
3200 MHz |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
32 GB |
内置输入/输出系统
| SATA III连接器数量 |
4 |
| M.2 (M) 插槽数量 |
1 |
技术细节
| SATA 连接口总数 |
4 |
| USB 3.0（第 1代3.1）端口数量 |
6 |
| USB版本 |
2.0/3.0 (3.1 Gen 1) |
| USB 端口数量 |
8 |
背板输出端口
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
6 |
| HDMI端口数量 |
1 |
| DisplayPort版本 |
1.2 |
另外
| 主板晶片 |
Intel Z170 |
| 以太网路(RJ-45)连接接口数量 |
1 |
mITX, 2 x DIMM Slots (32 GB Max), HD Audio, 4 x SATA 6G

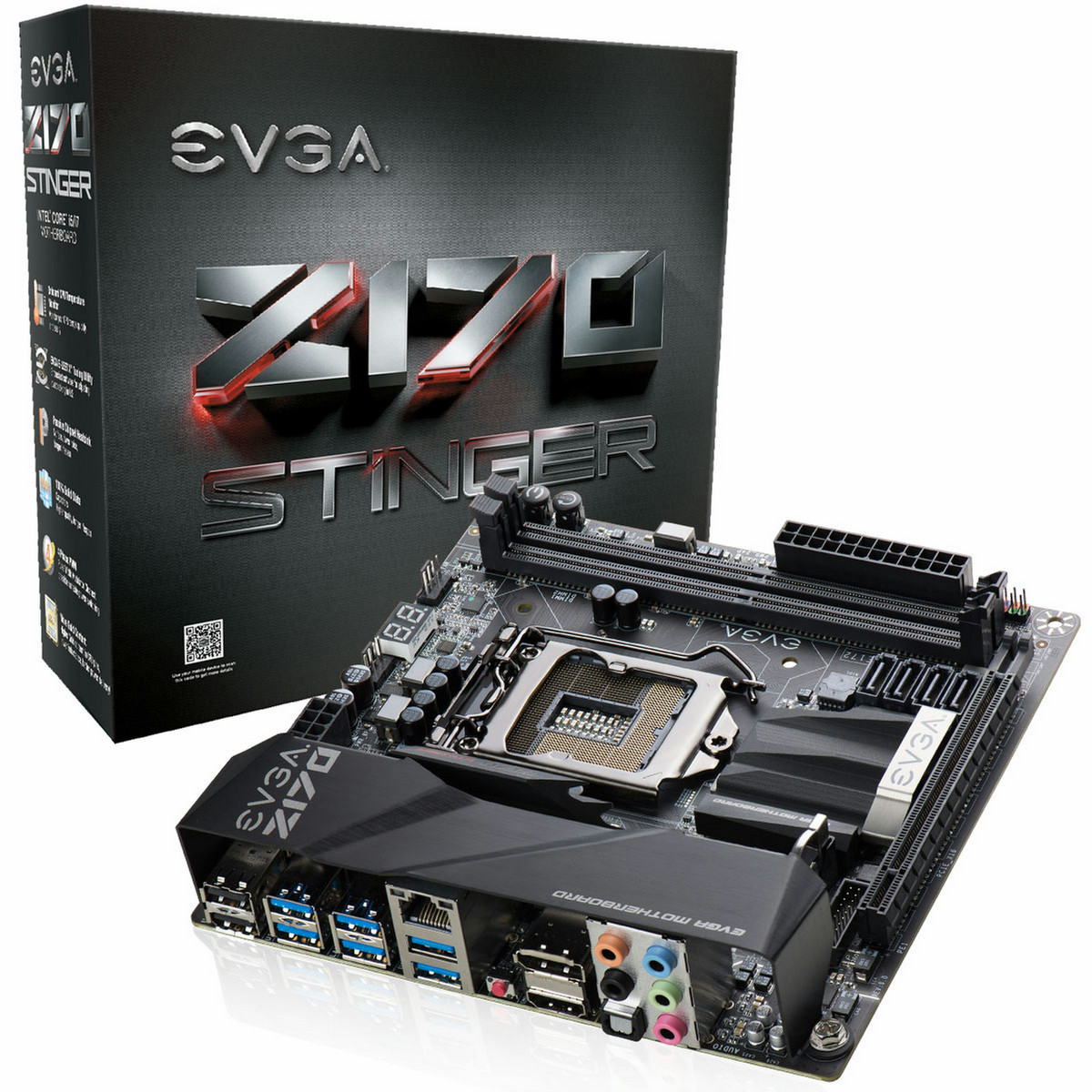

The EVGA Z170 Stinger motherboard is engineered to exceed the best. Featuring a next generation Intel Z170 Express Chipset with DDR4 3200MHz+ memory support, this motherboard is built to perform. Four native SATA 6G ports, eight native USB 3.0 provide robust storage and I/O options, and the mITX form factor allows for an extremely compact performance system.
Performance Refined
Introducing the EVGA Z170 motherboard lineup. These motherboards take performance to another level with next generation features like high performance native SATA 6G ports, next generation USB 3.1*, up to NVIDIA 4-Way SLI support*, Creative Core3D Audio* and more. A reimagined board and colour layout with the latest EVGA GUI BIOS that focuses on functionality make the EVGA Z170 lineup a top choice for gamers, performance users and hardware enthusiasts.
Features
- 4 Phase PWM
- 10 Layer PCB
- Onboard Power, Reset, and CMOS Reset buttons
- Isolated Audio traces for better sound clarity
- Onboard POST Code Indicator/CPU Temp Monitor
- Black Nickel CPU ILM
- 150% Increased Gold Content
M.2 Support
The EVGA Z170 lineup includes support for full size storage and/or WiFi from the M.2 jacks.
Onboard Power, Reset and CMOS Reset Buttons
When testing on the Z170, or running it in a benching environment where you do not need to worry about wiring the board to a case to have access to power and reset buttons, they are built onto the board.
