内置输入/输出系统
| 通过内部接头的串行端口 |
Y |
| USB 2.0接口 |
3 |
| S/PDIF输出端口 |
Y |
| ATX电源接头 |
Y |
| S / PDIF输入接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
8 |
| 周边（莫仕）电 源连接器（4针） |
1 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
5 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
性能
| 主板元件 |
ATX |
| 处理器插座 |
LGA 1150 (Socket H3) |
| 主板芯片组系列 |
Intel |
| 可信任平台模组(全面生产管理) |
Y |
| PC健康监测 |
CPU, FAN, Temperature |
| 英特尔®图形技术处理器 |
Y |
| 音频系统 |
Realtek ALC898 |
| 组件应用 |
PC |
| 冷却方式 |
Passive |
内存参数
| 可支持内存时钟速度 |
1333, 1600, 3000 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
N |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
EFI AMI |
| 清除CMOS按钮 |
Y |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
2.0a |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
图像
| 板载图形适配器 |
Y |
| 图形适配器系列 |
Intel |
| 分立图形支持 |
Y |
| HDCP |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
2 |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
6 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
3 |
| PCI Express × 1插槽 |
3 |
| PCI Express配件 |
1x4, 1x8, 1x16 |
| PCI Express插槽版本 |
2.0, 3.0 |
另外
| 主板晶片 |
Intel Z87 |
| 英特尔® 高保真音频技术 |
Y |
| 图形适配器 |
HD Graphics |
| 双dvi（互应式数字视频） |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

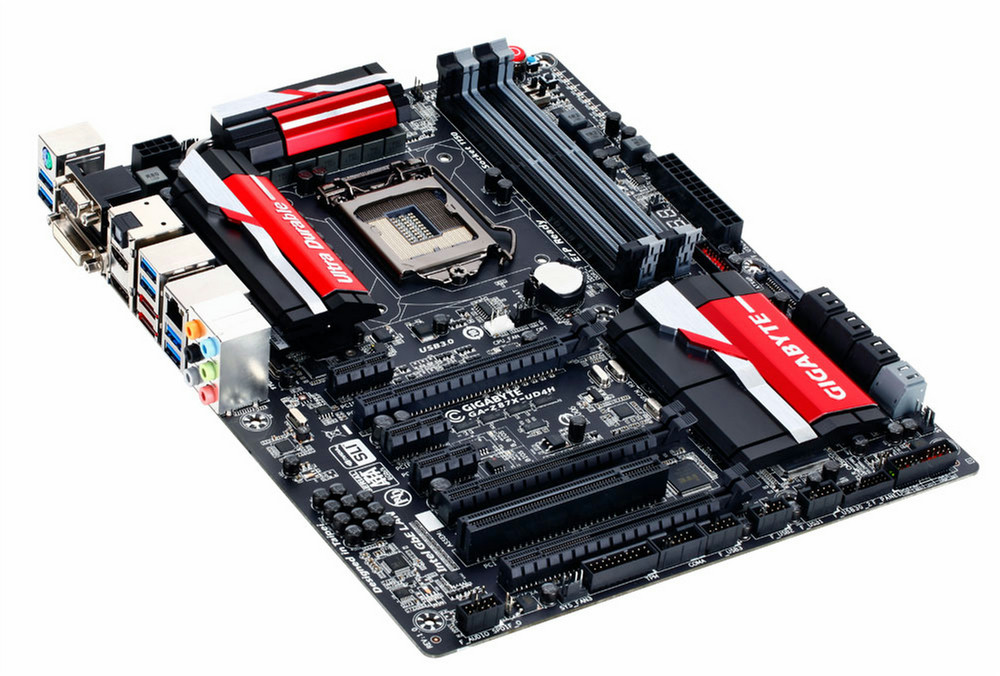

GA-Z87X-UD4H, LGA 1150, Intel Z87, 4 x DDR3 3000-1333MHz, Intel HD Graphics, 3 x PCI Express x16 (2-Way NVIDIA SLI, 2-Way AMD CrossFire), 8 x SATA 6.0Gb/s, GbE LAN, EFI DualBIOS, ATX
- Supports 4th Generation Intel® Core™ processors.
- GIGABYTE Ultra Durable™ 5 Plus Technology.
- All IR Digital Power design.
- GIGABYTE UEFI DualBIOS.
- 15µ gold plated CPU socket.
- Multi-GPU Support.
- Durable black solid capacitors.
- GIGABYTE On/Off Charge™ 2 for USB devices.
- Intel® LAN with high ESD Protection.
- New Heatsink design for better cooling.
- Realtek ALC898 with High Quality 110dB SNR HD audio.
- Onboard Quick Buttons.
- Supports CFOS Speed Internet Accelerator Software.
- 10 USB 3.0 ports.
GIGABYTE 8 Series Motherboards.
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® 8 Series Platform.
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.
