性能
| 主板元件 |
ATX |
| 英特尔®快速存储技术 |
Y |
| 主板芯片组系列 |
Intel |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133, 2400, 2600, 2800, 3000, 3200, 3600 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
UEFI |
| 清除CMOS按钮 |
Y |
| 清除CMOS跳线 |
Y |
内置输入/输出系统
| USB 2.0接口 |
1 |
| S/PDIF输出端口 |
Y |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
6 |
| 并行接口 |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
3 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
| M.2 (M) 插槽数量 |
1 |
| SATA Express 端口数量 |
6 |
背板输出端口
| DVI-D接口数量 |
1 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
2 |
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
扩展槽
| PCI 插槽 |
2 |
| PCI Express X16（Gen 3.x）插槽 |
2 |
| PCI Express x1（Gen 3.x）插槽 |
3 |
处理器的特殊功能
| 英特尔®智能响应技术 |
Y |
| 英特尔®虚拟化技术 |
VT-d |
另外
| 主板晶片 |
Intel Z170 |
| 英特尔® 高保真音频技术 |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

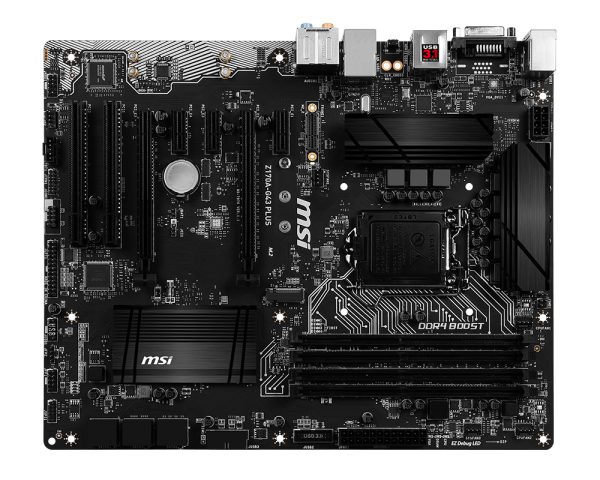

Intel Socket 1151, Intel Z170, 4x DIMM Dual DDR4, 6x SATA 6Gb/s, HDMI/DVI-D, USB 3.1/USB 2.0, Gigabit LAN, ATX
UNMATCHED MEMORY PERFORMANCE AND STABILITY
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
OC GENIE 4
OC Genie is the world's first built-in hardware overclocking technology on motherboards. With this one-second overclocking option we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot.
TURBO M.2
Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.
TURBO U.2 HOST CARD (OPTIONAL)
The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.
THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.
Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.
- Variety of options to boost your game performance
- Next gen UEFI BIOS with award winning design
- High-resolution multi language scalable font
- Easy to use
- Advanced overclocking
STABLE, SECURE NETWORKING
The Gigabit network adapter on MSI Professional motherboards offers fast, reliable and secure networking.
Featuring Network Genie for easy to use bandwidth optimizing
- Allows you to change applications' traffic priority
- Perfect for cloud computing and data syncing
M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.
MILITARY CLASS 4 COMPONENTS
DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
DARK CAP
With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year Lifespan.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.
OPTIMIZED FOR MULTIPLE GRAPHICS CARDS
This motherboard supports AMD CrossFire™. Optimal PCI-Express slot placement allows for better fitting and airflow.
That way, you can enjoy the best graphics at the highest framerate jumping off from your screen when running an AMD CrossFire™ setup.
PREVENT DAMAGE!
Worried about damaging the PCI-Express slot or your graphics card because of the weight?
MSI VGA ARMOR
With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.
TOTAL
FAN CONTROL
Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.
- Full control of fans through 4-pin fan headers
- Real-time monitor fan speeds & temperatures
- Intuitive, easy to use application design
- Set profiles
- Log fan speed, voltage and temperature status
WHQL CERTIFIED. WINDOWS 10 READY.
Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards.
MSI is world’s first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI PRO Series motherboard.
STUDIO GRADE SOUND WITH AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.
2x FASTER
MSI USB 3.1 GEN2
Transferring your favorite games, music and movies over USB has never been faster. USB 3.1 enables lightning fast transfer speeds up to 10Gb/s!
Benefits
- 2X faster than USB 3.1 Gen1
- 20X faster than USB 2.0
- Up to 10Gbps data transfer bandwidth
- Boost transfer rate for your PC and peripherals
FRONT USB 3.1 GEN1
With a cleverly placed USB 3.1 Gen1 front pin header on MSI motherboards, you can connect up to 4 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports at the rear.
LEGACY DVI VIDEO SUPPORT
To support professional monitors, TV's, beamers and other displays, this MSI motherboard features DVI video output. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.
