设计
| 冷却方式 |
Active |
| 插槽数量 |
2 |
| 格式要素 |
ATX |
性能
| HDCP |
Y |
| Full HD |
Y |
| 集成电视调谐器 |
N |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| NVIDIA® GameWorks VR 平台 |
Y |
| NVIDIA® G-SYNC 技术配置 |
Y |
处理器
| 处理器频率 |
1771 MHz |
| 处理器提高时钟速度 |
1556 MHz |
| 视频卡最大显示 |
4 |
| 图形处理器系列 |
NVIDIA |
| 最大数字分辨率 |
7680 x 4320 pixels |
能量控制
| 最低系统供电 |
400 W |
| 补充电源连接器 |
1x 6-pin |
端口 & 界面
| 接口类型 |
PCI 3.0 |
| HDMI端口数量 |
1 |
| DisplayPort 数量 |
1 |
| DVI-D接口数量 |
2 |
内存参数
| 独立显卡适配器內存 |
6 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
192 bit |
| 内存时钟速度 |
8008 MHz |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
GeForce GTX 1060 |

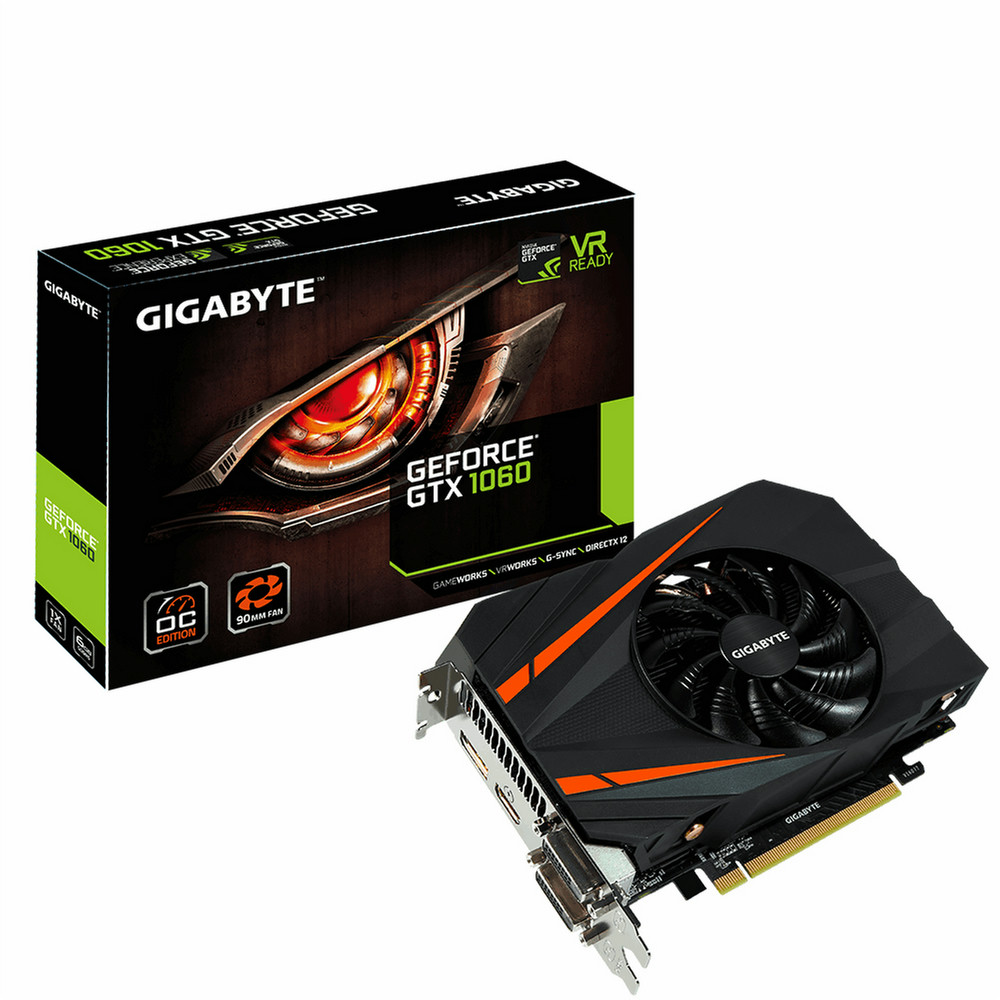

GeForce GTX 1060, 16 nm, 8008 MHz, 6 GB GDDR5, 192 bit, PCI-E 3.0 x 16, 2 x Dual-link DVI-D, 1 x HDMI-2.0b, 1 x Display Port-1.4
<b>Custom-designed Cooling System</b>
Equipped with 2 pure copper heat-pipes and 90 mm unique-blade fan with 3D active functionality, and heat pipes direct touch technology, the cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise.
<b>Cooling System-Fan</b>
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
<b>Cooling System- Heat Pipes</b>
Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
<b>Heat Pipe Direct Touch</b>
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
<b>Compact Card Size</b>
Measuring merely 17cm in length, the card, perfectly compatible for building most of the PCs from ATX to mini-ITX.
<b>Performance</b>
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
<b>Ultra Durable Graphic Components</b>
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
<b>Intuitive Utility</b>
Adjust clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
