内存参数
可支持内存时钟速度 |
1333, 1600, 1866, 2133 MHz |
无错误检测和更正 |
Y |
错误更正代码 |
Y |
支持的DIMM大小 |
16GB, 32GB, 4GB, 8GB |
最大内部存储 |
512 GB |
DIMM插槽数量 |
8 |
支持的内存类型 |
DDR4-SDRAM |
内存电压 |
1.2 V |
处理器
发热量 |
160 W |
可支持处理器数量 |
1 |
英特尔® 至强® 系列 |
E5-1600, E5-2600 |
处理器生产厂商 |
Intel |
支持QPI |
9.6 GT/s |
可支持的处理器的核心数量 |
18 |
内置输入/输出系统
TPM(可信任安全平台模组)接口 |
Y |
SATA III连接器数量 |
10 |
背板输出端口
PS/2连接埠数量 |
1 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
8 |
串口数量 |
1 |
联网
无线局域网连接 |
N |
局域网控制器 |
Intel I210AT |
以太网接口类型 |
Gigabit Ethernet |
基本輸出輸入系統/BIOS
ACPI的版本 |
4.0 |
基本输入输出系统类型 |
AMI |
BIOS内存大小 |
128 MB |
扩展槽
PCI Express x1(Gen 2.x)插槽 |
2 |
PCI Express X16(Gen 3.x)插槽 |
4 |
另外
主板晶片 |
Intel C612 |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
2 |

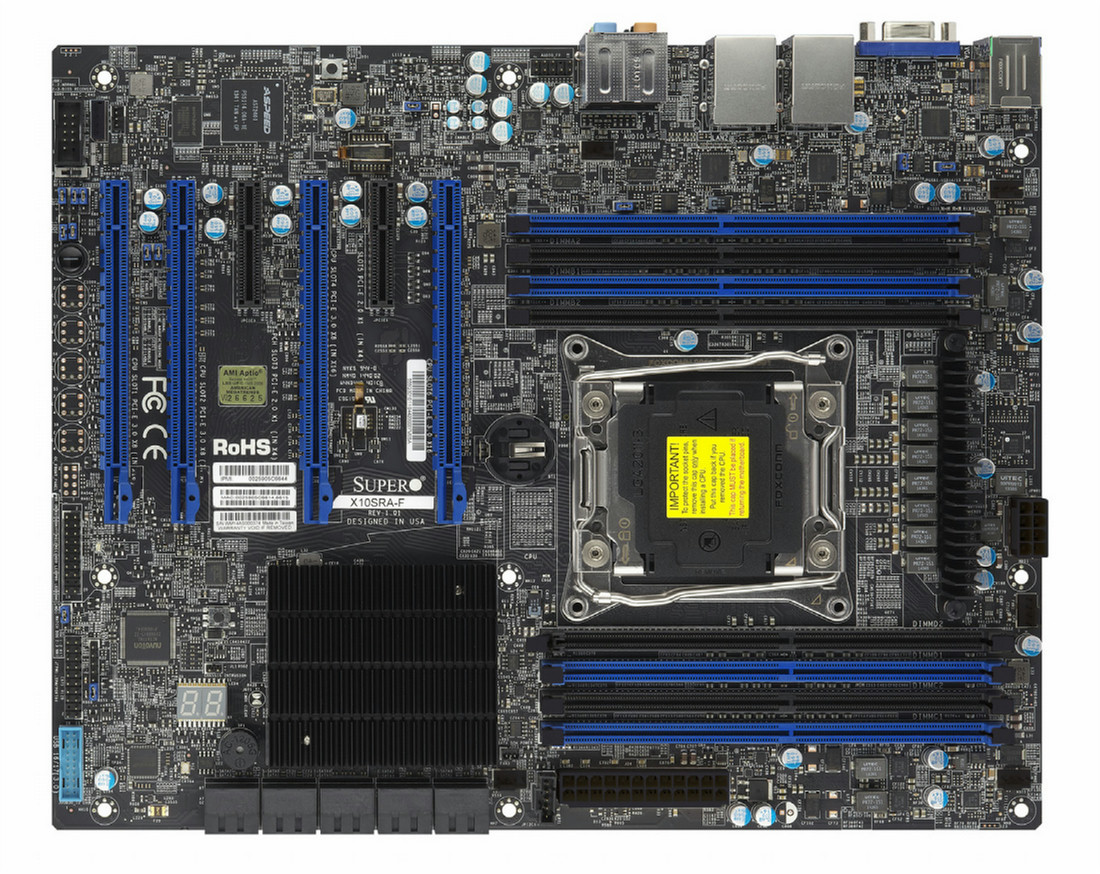

Single socket R3, LGA 2011, Intel Xeon E5-2600 v3, E5-1600 v3, Core i7, Intel C612, 512GB ECC DDR4 2133MHz LRDIMM, 64GB ECC/non-ECC UDIMM, 8x DIMM, Intel i210-AT Dual port GbE LAN, Bulk Pack
The new Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.
