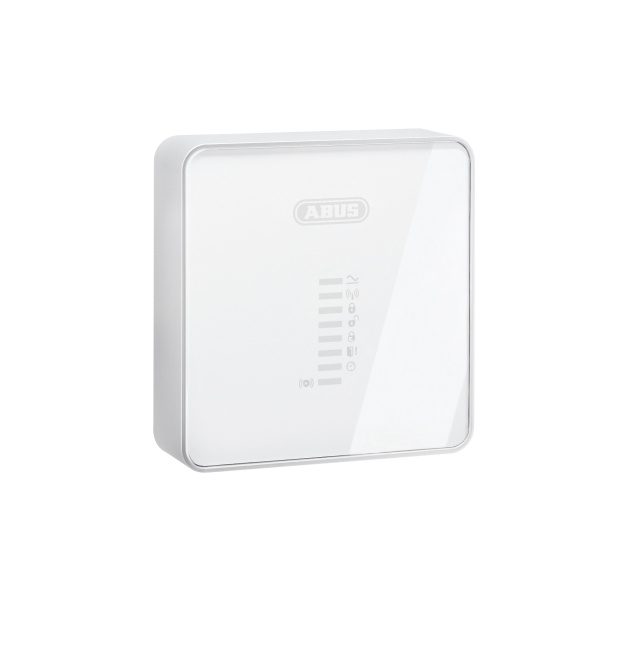

Wireless Info Module, 8 LEDs, 868,6625 MHz, FM / AM, 110 dB
- Provides information on Secvest 2WAY status
- 8 LED indicators
- Different signal and alarm tones
- Integrated piezo signal generator
- Supplied externally with 12 V
The wireless info module is an optional accessory for the Secvest 2WAY. Via an LED display and various acoustic signals, it notifies the alarm system of all processes and statuses. You can read the following system statuses from the 8 LEDs of the info module:
- Voltage display
- Reception of a valid signal
- Status of the sub-section to which the control unit is assigned (armed/disarmed) Information available after reset
- Status of the sub-section to which the control unit is assigned (internally armed/disarmed)
- Open zones available/the Secvest is in installer mode
- If the input or output delay time is running
- An alarm is triggered
You can learn the following statuses from the acoustic signals of the internal Piezo signal generator:
- Fault: The system cannot be armed
- During the output delay, a zone has been opened/closed
- Input delay is running
- Door chime
- Panel successfully armed
- Teach-in signal received
- Installer mode exited
In addition, the internal Piezo sounder provides an alarm with up to 110 dB if triggered. The distance from the wireless info module to the alarm panel can be up to 100 meters.
