Design
| Number of 3.5" bays |
6 |
| Number of 5.25" bays |
4 |
| Number of internal 3.5" bays |
6 |
| Side window |
Y |
| Material thickness |
0.6 mm |
| Form factor |
Midi-Tower |
| Type |
PC |
| Number of expansion slots |
7 |
| Maximum graphics card length |
400 mm |
Cooling
| Rear fans diameters supported |
120 mm |
| Maximum rear fans |
1 |
| Maximum side fans |
2 |
| Side fans diameters supported |
140, 120 mm |
| Maximum front fans |
1 |
| Front fans installed |
1x 140 mm |
| Rear fans installed |
1x 120 mm |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Ports & interfaces
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

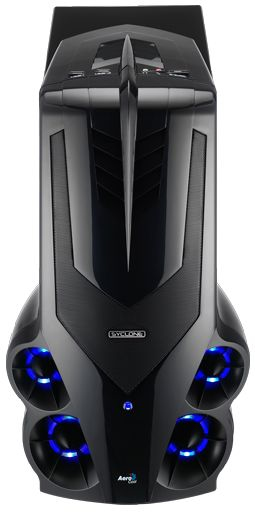

Middle Tower, ATX/Micro-ATX, 7 Slots, 2 x USB 3.0/e-SATA/Mic & headphone, Black/Blue
- High Performance "Mid-Tower" for gamers and enthusiasts.
- Solidly constructed chassis - The chassis is solidly constructed by 0.6mm SECC Japanese steel
- Unique and Attractive Internal Color Combination - Not only the chassis is beautifully finished in All Black (both interior and exterior), the PCI covers, MB Plate, Removable HDD cage and screw-less kits are high-lighted in Blue (Syclone II Black) or Red (Syclone II Red) colors to make the case UNIQUE and stands out from the others.
- High-End Graphic Card Support (up to 400mm) - Supports Longer high-end VGA cards up to 280mm. The Middle HDD Cage is removable Once the middle HDD cage is removed the chassis can support VGA cards up to 400mm.
- High Expandability - Supports 4 x 5.25" external devices, 6 x 3.5" HDDs or 3 x 3.5" & 3 x 2.5" HDDs and 1 x 3.5" external device (with the converter) such as a Floppy drive or a Card Reader.
- Ease of Installation - New "Easy-Install" screw-less kits are included for the 5.25" devices and HDDs. The HDD cage is also rotated 90 degrees for easy installation of HDDs.
- Easy Access Top I/O Ports - 2 x USB3.0, Audio/Mic (AC 97 + HD audio) and E-SATA ports are located on the top panel for easy access.
- Smart Cable Management - "Cable routing is pre-drilled on the MB so users can hide cables behind the MB tray. The pre-drilledholes are also protected by top quality rubber to prevent cuts or damages to the cable from sharp edges".
- Dust Protection - Includes removable bottom PSU dust filters to prevent dust entering your computer.
- Mesh PCI cover - Includes Blue (Syclone II Black) or Red Metal Mesh PCI covers (Syclone II Red) for better ventilation.
- Bottom PSU position - the bottom PSU location enables PSUs to suck in cold air and provide better air flow for your system.
- Water-cooling Support - water-cooling holes are pre-drilled to support water-cooling systems.
- Easy Cooler Assembly - CPU hole is pre-drilled on the MB plate for simple cooler assembly and removable.
- Transparent Side Window with the option to install 1 x 12cm or 14cm fans !!
