Networking
| IGMP snooping |
Y |
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Flow control support |
Y |
| DHCP server |
Y |
| 10G support |
Y |
Management features
| Quality of Service (QoS) support |
Y |
| Multicast support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
16000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
136 Gbit/s |
| Maximum data transfer rate |
10 Gbit/s |
| Number of VLANs |
4000 |
Other features
| Latency |
<4 μs |
| Power LED |
Y |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| SFP/SFP+ slots quantity |
2 |
| SFP+ module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
48 |
Protocols
| Supported network protocols |
TFTP, FTP, SFTP, SCP |
Operational conditions
| Operating temperature (T-T) |
32 - 113 °F |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

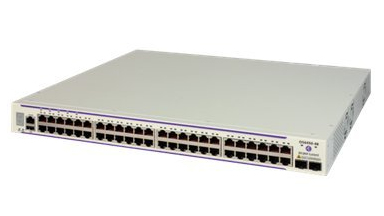

Gigabit Ethernet chassis, 1U, 48 10/100/1000 Base-T, 2 x SFP+ (1G/10G)
The new Alcatel-Lucent OmniSwitch™ 6450 Gigabit Ethernet Stackable LAN Switch is the latest Value stackable gigabit switch in the OmniSwitch family of products. The OmniSwitch 6450 was specifically built for versatility offering optional upgrade paths for 10 Gigabit stacking, 10 Gigabit Ethernet uplinks and Metro Ethernet services.
With an optimized design for flexibility, scalability as well as low power consumption, the OmniSwitch 6450 Stackable Gigabit Ethernet Switch runs the field-proven Alcatel-Lucent Operating Software (AOS), providing an outstanding edge solution for highly available, secure, self-protective, easily managed and eco-friendly networks.
The Alcatel-Lucent OmniSwitch 6450 family is embedded with the latest technology, AOS innovations and offers maximum investment protection.
Solutions benefiting from the OmniSwitch 6450 family of switches are:
- Edge of small-to-mid-sized networks
- Branch office enterprise and campus workgroups
- Residential and commercial managed services applications
Benefits
- Uses AC or DC power
- Offers high availability using stacking functions, redundant power and complete element redundancy
- Offers a variety of Power-over-Ethernet (PoE), non-PoE gigabit and fiber models. Includes the 24- and 48-port (PoE and non-PoE) triple-speed copper versions and a 24-port fiber model
- All models offer investment protection with a migration path to 10Gbs uplink
- Supports advanced layer-2 switching with basic layer-3 routing at wire-rate speeds and extensive AOS functionality
- Features always-on robust infrastructure, optimal response time for users and applications, and investment protection
- Allows business continuity and prevents network outages with edge network security and control
- Offers scalable and versatile configuration with effortless deployment meeting enterprise edge, branch office, campus or service provider preferences
- Stackable, fixed-configuration chassis in a 1U form factor can be optionally equipped with Alcatel-Lucent-approved small form factor pluggable (SFP) transceivers supporting short, long and very long distances
