Management features
| Multicast support |
Y |
| MIB support |
RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
18.8 Gbit/s |
| Number of VLANs |
4096 |
| Throughput |
27.9 Mpps |
| Number of multicast groups filtered |
255 |
Performance
| Processor frequency |
266 MHz |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Stackable |
Y |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| IP routing |
Y |
| IP address table |
2096 |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| Full duplex |
Y |
Security
| Static port security |
Y |
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Power
| Number of power supply units |
2 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Fiber ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
2 |
Design
| Safety |
UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825 |
| Electromagnetic compatibility |
EMI: FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3 |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| HDMI stacking ports quantity |
2 |
| Jumbo Frames support |
Y |
Layer 2–4 Fast Ethernet Stackable Switch, 24 x 10/100TX, 2 x Gigabit-SFP, 2 x HDMI stacking, European power cord

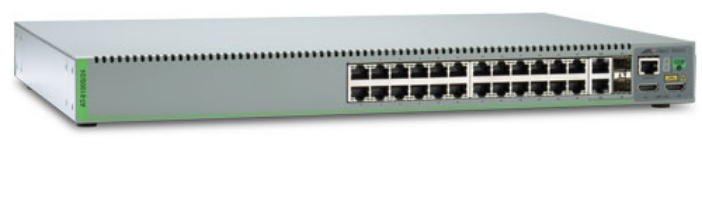

The Allied Telesis AT-8100S/24 features 24 x 10/100TX ports, 2 x Gigabit-SFP combo (10/100/1000T-100/1000 SFP) uplink ports and 2 x HDMI stacking ports. It offers two internal AC power supplies or an optional DC power supply. The AT-8100S/24 is a highly reliable and easy to manage Layer 2-4 solution — not only for the edge of the network in larger enterprises, but also for small and midsize businesses, small offices, schools, and retail stores.
