Networking
VLAN support |
Y |
IP routing |
Y |
Port mirroring |
Y |
Broadcast storm control |
Y |
IGMP snooping |
Y |
Rate limiting |
Y |
Link aggregation |
Y |
Routing entries |
128 |
Spanning tree protocol |
Y |
Flow control support |
Y |
DHCP client |
Y |
DHCP server |
Y |
10G support |
Y |
Full duplex |
Y |
Protocols
Supported network protocols |
IPv4/IPv6, MAC, IP, TCP, ARP, BOOTP |
Management protocols |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SSH, SSH-2 |
Other features
Networking features |
Gigabit Ethernet |
Authentication method |
Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, HTTP, HTTPS, Dot1x |
Latency |
3.5/4.1 µs |
Cabling technology |
10/100/1000 Base-T(X) |
Bandwidth |
184 Gbit/s |
Input frequency |
63 Hz |
Power LED |
Y |
Wi-Fi |
N |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Power
Input voltage |
240 V |
Number of power supply units |
1 |
Management features
Web-based management |
Y |
Multicast support |
Y |
MIB support |
MIB-II, Bridge-MIB, Eth-MIB, VLAN-MIB, SMON-MIB, Client-MIB, Entity-MIB, LLDP-MIB, LLDP-MED-MIB |
System event log |
Y |
Quality of Service (QoS) support |
Y |
Data transmission
MAC address table |
32000 entries |
Store-and-forward |
Y |
Supported data transfer rates |
10/100/1000 Mbps |
Switching capacity |
384 Gbit/s |
Maximum data transfer rate |
10 Gbit/s |
Number of VLANs |
4093 |
Number of queues |
8 |
Throughput |
107.1 Mpps |
Number of static routes |
512 |
Performance
Processor frequency |
800 MHz |
Noise level |
37.3 dB |
Packet buffer memory |
16 MB |
Internal memory |
512 MB |
Flash memory |
128 MB |
Stackable |
Y |
Security
Static port security |
Y |
SSH/SSL support |
Y |
MAC address filtering |
Y |
Access Control List (ACL) |
Y |
Ports & interfaces
SFP/SFP+ slots quantity |
4 |
Basic switching RJ-45 Ethernet ports quantity |
20 |
SFP+ module slots quantity |
2 |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10GBASE-T, 100BASE-T, 10BASE-T |
Console port |
RS-232 |
Design
Safety |
CE, CSA, UL/cUL |
Form factor |
1U |
Rack mounting |
Y |
Operational conditions
Operating temperature (T-T) |
32 - 122 °F |
Operating altitude |
0 - 3000 m |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
Y |
Additionally
Jumbo Frames support |
Y |
Ethernet LAN connection |
Y |
Wireless technologies |
Wired |

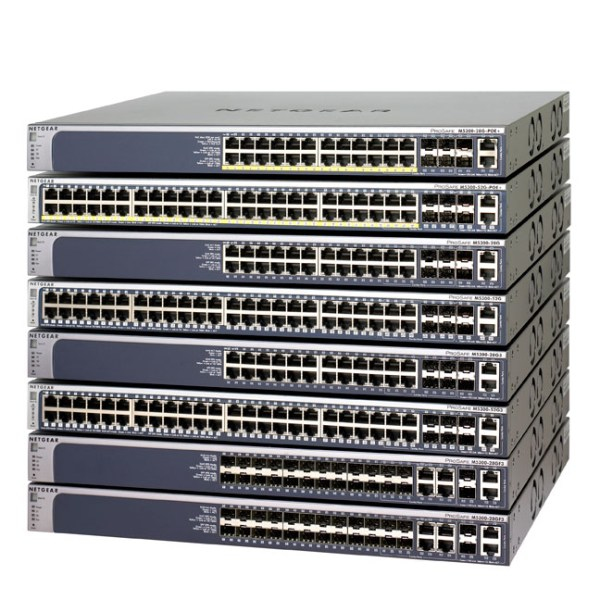

Netgear M5300-28G. Switch type: Managed network switch, Switch layer: L2+, MIB support: MIB-II, Bridge-MIB, Eth-MIB, VLAN-MIB, SMON-MIB, Client-MIB, Entity-MIB, LLDP-MIB, LLDP-MED-MIB. Console port: RS-232, Copper ethernet cabling technology: 1000BASE-T,100BASE-T,100BASE-TX,10BASE-T,10GBASE-T. Networking standards: IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,I. MAC address table: 32000 entries, Switching capacity: 384 Gbit/s, Supported data transfer rates: 10/100/1000 Mbps. Security algorithms: 802.1x RADIUS,HTTPS,SSH,SSH-2,SSL/TLS
