Cooling
| Maximum side fans |
1 |
| Side fans diameters supported |
80 mm |
| Maximum front fans |
2 |
| Rear fans diameters supported |
120 mm |
| Rear fans installed |
1x 120 mm |
| Maximum rear fans |
1 |
Design
| Side window |
N |
| Number of external 5.25" bays |
4 |
| Form factor |
Midi-Tower |
| Type |
Server |
| Number of 3.5" bays |
4 |
| Number of 5.25" bays |
4 |
| Number of internal 3.5" bays |
4 |
Power supply
| Power supply included |
Y |
| Power supply |
550 W |
Ports & interfaces
| Firewire (IEEE 1394) ports |
1 |

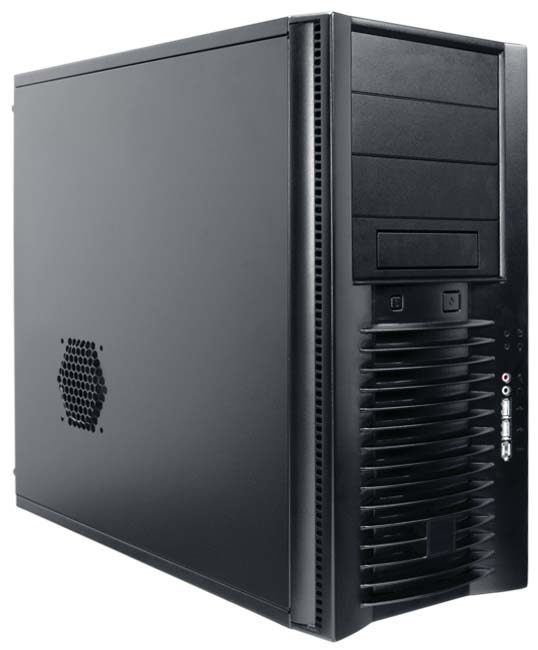

Atlas Server Case w/PSU - 4 x 5.25”, 4 x 3.5”, 2 x USB 2.0, 1 x IEEE 1394
<b>A server case that’s just the right size</b>
The new, smaller sibling to the Titan 650, the Atlas case continues to meet the needs of today’s server and workstation markets. Front accessible HDD installation, a 120mm TriCoolTM exhaust fan & two front 92mm fan mounts and a TruePower Trio 550W power supply make building, upgrading and accessing a breeze. An ideal case for professional system builders and power users building a sturdy server.
<b>Power Supply included: TruePower Trio 550W ATX12V v2.2 and EPS12V compatible</b>
- Precise ±3% power regulation
- Dedicated power circuitry delivers more reliable output
<b>Advanced cooling system:</b>
- 1 rear 120mm TriCoolTM 3-speed fan
- 2 front mounts for optional 92mm fans
- Side Panel vent with mount for optional 80mm fan
to provide maximum cooling to the VGA card
<b>8 Drive Bays:</b>
- Front Accessible: 4 x 5.25” (with one 5.25” to
3.5” adapter)
- Internal: 4 x 3.5” removable HDD trays with rubber
grommets to isolate drive vibrations
<b>Front-mounted ports for easy multimedia connections:</b>
- 2 x USB 2.0
- 1 x IEEE 1394 (FireWire®, i.Link®)
- Audio In and Out
- Removable side panel with easy-access thumb screws
- Removable front bezel for easy access to drive bays
- Blue LEDs on front for Power On and HD indicators
- Motherboard: Fits micro and standard ATX
