Processor
Number of QPI links |
2 |
Processor boost frequency |
3.06 GHz |
Tcase |
81.3 °C |
Bus type |
QPI |
Memory types supported by processor |
DDR3-SDRAM |
Supported instruction sets |
SSE4.2 |
ECC supported by processor |
Y |
Maximum internal memory supported by processor |
288 GB |
Processor frequency |
2.66 GHz |
Stepping |
B1 |
Processor cores |
6 |
Processor system type |
DP |
Processor operating modes |
64-bit |
Embedded options available |
N |
FSB Parity |
N |
Conflict Free processor |
N |
Memory channels supported by processor |
Triple |
Memory bandwidth supported by processor (max) |
32 GB/s |
Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
Processor cache type |
Smart Cache |
Processor code |
SLBV3 |
Physical Address Extension (PAE) |
40 bit |
Thermal Monitoring Technologies |
Y |
Idle States |
Y |
Execute Disable Bit |
Y |
Thermal Design Power (TDP) |
95 W |
Processor cache |
12 MB |
Number of processors installed |
2 |
CPU multiplier (bus/core ratio) |
20 |
Processor lithography |
32 nm |
Processor package size |
42.5 mm |
Processor special features
Intel Rapid Storage Technology |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel Demand Based Switching |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel FDI Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel vPro Technology |
N |
Intel Clear Video Technology for MID |
N |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Enhanced Halt State |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
CPU configuration (max) |
2 |
Intel Dual Display Capable Technology |
N |
Intel Clear Video Technology |
N |
Intel 64 |
Y |
Intel® Insider™ |
N |
Intel® Quick Sync Video Technology |
N |
Processor ARK ID |
47922 |
Intel Virtualization Technology (VT-x) |
Y |
Intel Trusted Execution Technology |
Y |
Intel Flex Memory Access |
N |
Intel Fast Memory Access |
N |
Intel® Turbo Boost Technology |
Y |
Storage
Hard drive size |
3.5 " |
Hard drive interface |
Serial ATA |
RAID support |
N |
Maximum storage capacity |
8 TB |
Number of hard drives supported |
4 |
Total storage capacity |
1512 GB |
Number of hard drives installed |
1 |
Hard drive speed |
7200 RPM |
Hard drive capacity |
1000 GB |
Expansion slots
PCI Express x4 slots |
2 |
PCI Express slots version |
2.0 |
PCI Express x16 slots |
1 |
Other features
Mac compatibility |
Y |
Graphics adapter family |
AMD |
CD read speed |
32 x |
Memory
Maximum internal memory |
16 GB |
Memory slots |
4 |
Memory clock speed |
1066 MHz |
ECC |
Y |
Internal memory |
8 GB |
Internal memory type |
DDR3-SDRAM |
Operational conditions
Operating altitude |
0 - 3000 m |
Power
Power supply input frequency |
50 - 60 Hz |
Networking
Networking features |
Gigabit Ethernet |
Cabling technology |
10/100/1000Base-T(X) |
Network ready |
Y |
Certificates
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Energy Star certified |
Y |
EPEAT compliance |
Gold |
Ports & interfaces
DisplayPorts quantity |
1 |
Firewire (IEEE 1394) ports |
4 |
Design
Chassis type |
Tower |
Optical drive type |
DVD Super Multi |
Additionally
Intel AES New Instructions |
Y |
Ethernet LAN connection |
Y |
System bus data transfer rate |
6.4 GT/s |
Graphics |
Radeon HD 5770 |
InTru™ 3D Technology |
N |
Ethernet LAN (RJ-45) ports quantity |
2 |

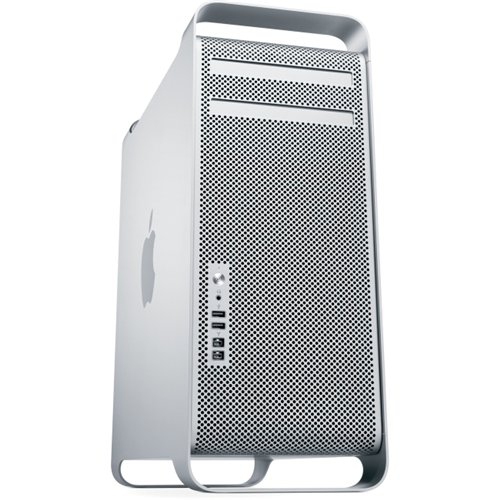

Mac Pro Server, 2xQuad-Core Intel Xeon 5650 (2.66GHz), 8GB 1066MHz ECC DDR3, 512GB SSD + 1TB SATA 7200RPM HDD, 1x 18x SuperDrive, 18.1 kg
Expansion made easy.
The easy-access interior of the Mac Pro feels like the well-organised workstation it is. No rat’s nest of components here. You don’t need to turn the system on its side or struggle to reach into awkward spaces to make changes. Just remove the side panel for instant access to everything. Slide out the processor tray to add memory. Slide out drive bays to add storage. Slide a simple bar to change up to four expansion cards at once. And with plenty of I/O ports both front and back, you’ll have room for all your external devices.
Tool-less PCI.
When it’s time to upgrade, a quick slide of the retention bar frees up the four expansion card slots for easy access. Thanks to a thumbscrew PCI bracket, you can swap out cards without any tools. All four slots are PCI Express 2.0 for incredible performance. And since the graphics slot in the Mac Pro is double-wide, your graphics card won’t cover an adjacent slot.
