Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Trusted Execution Technology |
N |
| Processor ARK ID |
41313 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| CPU configuration (max) |
1 |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel® Turbo Boost Technology |
Y |
Processor
| Processor boost frequency |
3.06 GHz |
| Processor core voltage (AC) |
1.55 V |
| Number of processors installed |
1 |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Physical Address Extension (PAE) |
36 bit |
| Thermal Design Power (TDP) |
130 W |
| Processor code |
SLBKR |
| Processor package size |
42.5 mm |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| Processor operating modes |
64-bit |
| Maximum internal memory supported by processor |
24 GB |
| Processor frequency |
2.8 GHz |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
67.9 °C |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| Stepping |
D0 |
| Processor cache type |
Smart Cache |
| Processor codename |
Bloomfield |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
21 |
Storage
| Hard drive size |
3.5 " |
| Number of hard drives installed |
3 |
| Hard drive capacity |
2000 GB |
| RAID support |
N |
| Maximum storage capacity |
8 TB |
| Hard drive interface |
Serial ATA |
| Number of hard drives supported |
4 |
| Total storage capacity |
6000 GB |
Networking
| Network ready |
Y |
| Networking features |
Gigabit Ethernet |
Memory
| ECC |
Y |
| Maximum internal memory |
16 GB |
| Memory slots |
4 |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
8 GB |
| Memory clock speed |
1066 MHz |
Other features
| CD read speed |
32 x |
| Graphics adapter family |
AMD |
| Mac compatibility |
Y |
Expansion slots
| PCI Express x4 slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express slots version |
2.0 |
Ports & interfaces
| Firewire (IEEE 1394) ports |
4 |
| DisplayPorts quantity |
1 |
Design
| Optical drive type |
DVD Super Multi |
| Chassis type |
Tower |
Operational conditions
| Operating altitude |
0 - 3000 m |
Power
| Power supply input frequency |
50 - 60 Hz |
Certificates
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Energy Star certified |
Y |
Additionally
| InTru™ 3D Technology |
N |
| Processing die size |
263 mm² |
| System bus data transfer rate |
4.8 GT/s |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Ethernet LAN connection |
Y |

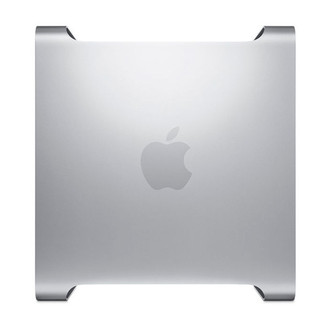

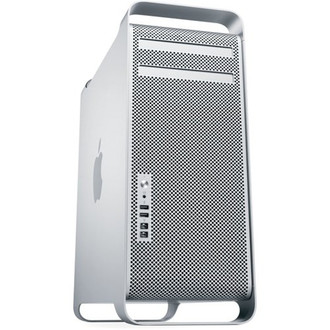

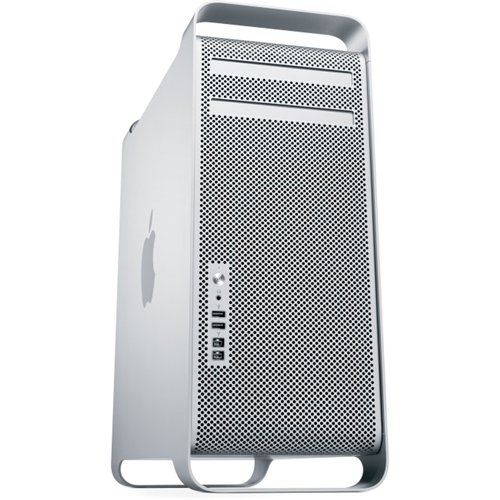

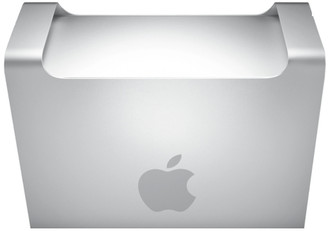

Mac Pro Server, Intel Xeon W3530 (2.8GHz), 8GB 1066MHz ECC DDR3, 3x 2TB SATA 7200RPM HDD, 1x 18x SuperDrive, 18.1 kg, MacPro Raidkarte
Expansion made easy.
The easy-access interior of the Mac Pro feels like the well-organised workstation it is. No rat’s nest of components here. You don’t need to turn the system on its side or struggle to reach into awkward spaces to make changes. Just remove the side panel for instant access to everything. Slide out the processor tray to add memory. Slide out drive bays to add storage. Slide a simple bar to change up to four expansion cards at once. And with plenty of I/O ports both front and back, you’ll have room for all your external devices.
Tool-less PCI.
When it’s time to upgrade, a quick slide of the retention bar frees up the four expansion card slots for easy access. Thanks to a thumbscrew PCI bracket, you can swap out cards without any tools. All four slots are PCI Express 2.0 for incredible performance. And since the graphics slot in the Mac Pro is double-wide, your graphics card won’t cover an adjacent slot.
