Storage
RAID support |
N |
Maximum storage capacity |
8 TB |
Number of hard drives supported |
4 |
Total storage capacity |
2000 GB |
Number of hard drives installed |
2 |
Hard drive interface |
Serial ATA |
Hard drive capacity |
1000 GB |
Hard drive size |
3.5 " |
Ports & interfaces
DisplayPorts quantity |
1 |
Firewire (IEEE 1394) ports |
4 |
Operational conditions
Operating altitude |
0 - 3000 m |
Power
Power supply input frequency |
50 - 60 Hz |
Networking
Networking features |
Gigabit Ethernet |
Network ready |
Y |
Certificates
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Energy Star certified |
Y |
Processor
Processor frequency |
2.93 GHz |
Number of processors installed |
2 |
Expansion slots
PCI Express slots version |
2.0 |
PCI Express x4 slots |
2 |
PCI Express x16 slots |
1 |
Memory
Maximum internal memory |
16 GB |
Memory slots |
4 |
Memory clock speed |
1066 MHz |
ECC |
Y |
Internal memory |
8 GB |
Internal memory type |
DDR3-SDRAM |
Other features
Mac compatibility |
Y |
Graphics adapter family |
AMD |
CD read speed |
32 x |
Design
Chassis type |
Tower |
Optical drive type |
DVD Super Multi |
Additionally
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
2 |

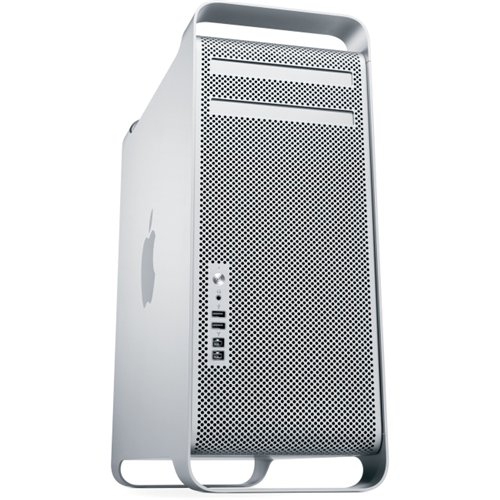

Mac Pro Server, 2x 6-Core Intel Xeon (2.93GHz), 8GB 1066MHz ECC DDR3, 2x 1TB SATA 7200RPM HDD, 1x 18x SuperDrive, 18.1 kg
Expansion made easy.
The easy-access interior of the Mac Pro feels like the well-organised workstation it is. No rat’s nest of components here. You don’t need to turn the system on its side or struggle to reach into awkward spaces to make changes. Just remove the side panel for instant access to everything. Slide out the processor tray to add memory. Slide out drive bays to add storage. Slide a simple bar to change up to four expansion cards at once. And with plenty of I/O ports both front and back, you’ll have room for all your external devices.
Tool-less PCI.
When it’s time to upgrade, a quick slide of the retention bar frees up the four expansion card slots for easy access. Thanks to a thumbscrew PCI bracket, you can swap out cards without any tools. All four slots are PCI Express 2.0 for incredible performance. And since the graphics slot in the Mac Pro is double-wide, your graphics card won’t cover an adjacent slot.
