Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Bandwidth |
8.8 Gbit/s |
| Wi-Fi |
N |
| Input frequency |
50 - 60 Hz |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| DHCP client |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Rate limiting |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Gigabit Ethernet (copper) ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Console port |
RS-232 |
| DC-in jack |
Y |
| SFP/SFP+ slots quantity |
2 |
| Combo SFP ports quantity |
2 |
Performance
| Firmware upgradeable |
Y |
| Stackable |
N |
Power
| Input voltage |
100 - 240 V |
Management features
| Web-based management |
Y |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |
24x10/100BaseTX, 2x Gigabit Combo, 2xSFP, L2+, QoS, Black

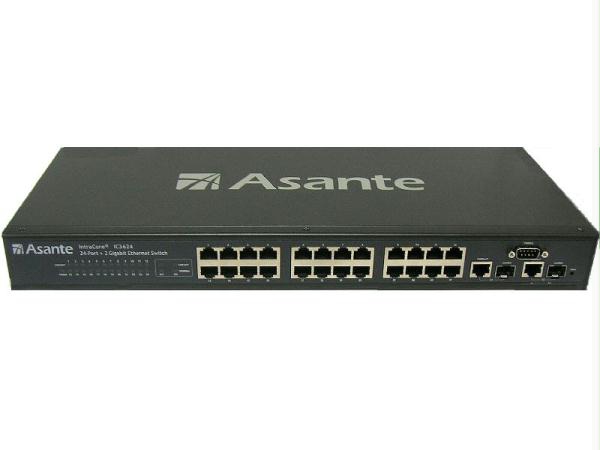

IC3648/IC3624 is an excellence enterprise or SME network edge aggregator switch. It is a layer 2+ manage switch with very simple and straightforward installation procedure for any end users. Just plug in the network connections (10,100 Mbps) and you'll be up and running within minutes. IC3648 switch automatically negotiates the best speed, duplex (full or half) and wiring (Auto-Uplink) for optimal performance. All 48/24 portss RJ45, 4/2 ports Giga RJ45 and shared 2 port of fiber optics are all runtime swappable.
IC3648/IC3624 fits perfectly in SME, coporate adge network, small to mid-size bussiness workgroup network. Built around a very sophisticated single-chip architecture, the IC3648 delivers true non-blocking, wire-speed performance on all ports with transport capability to deliver in realtime deliver bulk data from multimedia, file transfer, image and video information.
The IC3648/IC3624 gives you flexible choices of either copper cable or fiber cable on ports G0 to G3 to uplink to core or backbone network. Using SFP MiniGBIC modules you can connect to the network to a fiber optical network backbone, or extend the transmission distance with the use of single-mode or multi-mode Gigabit fiber cables.
The L2+ management feature tap into the IC3648/IC3624's on-board Command Line Interface and web configuration to enable Professional IP and regular user to maximize benefits of L2+ switch capability. With additional L2+ features with ACL on IP and MAC layer, IC3648/IC3624 gives full control for LAN users to acess the network and information.
