Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
8.8 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
255 |
Ports & interfaces
| SFP/SFP+ slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
| Console port |
RS-232 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Combo SFP ports quantity |
2 |
Networking
| IGMP snooping |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Management features
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Other features
| Input frequency |
50 - 60 Hz |
| Wi-Fi |
N |
| Networking features |
Gigabit Ethernet |
Performance
| Firmware upgradeable |
Y |
| Stackable |
N |
Power
| Input voltage |
100 - 240 V |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Wireless technologies |
Wired |
24x10/100BaseTX, 2x10/100/1000BaseT, 2xSFP, L2+, QoS, PoE, Black
Power over Ethernet

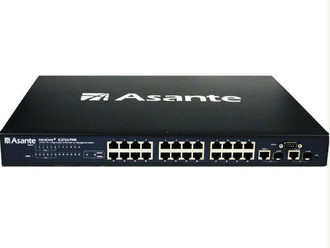

Compared with conventional 24-port 10/100 Fast Ethernet L2 switches, the IC3724PWR L2+ delivers power for all compatible devices.
- Meets IEEE 802.3af PoE standards
- Flexible and Smart PoE multi-power level options
- 180 watts of total power (up to 15.4 watts per 10/100 port)
- Ideally suited for high-quality VoIP traffic and other time-sensitive, real-time applications due to its unique support of L2+ features: IEEE 802.1p prioritization, DiffServ and IP ToS.
- Supports 802.1x authentication per port
- Up to 255 VLANs with GVRP and GARP
- 4 class of service queues per port
- IGMP v1 and v2 snooping support
- 6 groups of trunking for link aggregation and resiliency
- IEEE 802.1d and 802.1s spanning tree support with rapid reconfiguration and fast link option
The IC3724PWR can be managed via:
- Web browser
- Telnet (multiple sessions)
- Console
- SNMP v1 and v2c
