Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
ALC662 |
Internal I/O
| USB 2.0 connectors |
3 |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
512 MB |
| On-board graphics adapter |
Y |
Memory
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
10/100/1000 Mbps |
Additionally
| Chipset |
AMD 880G |
| Ethernet LAN (RJ-45) ports quantity |
1 |

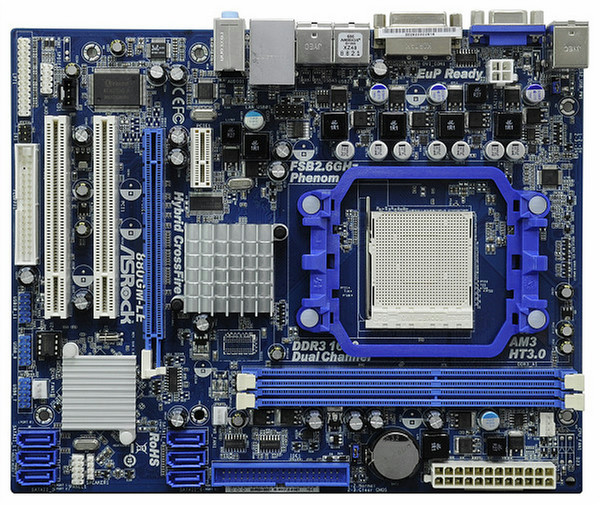

880GM-LE - AM3, DDR3, AMD 880G + SB710, micro ATX, Ethernet
One Click for All-in-One Function!
Turbo UCC technology provides you an all-in-one solution to unlock the hidden cpu cores in the CPU, get the amazing system performance boost by auto-overclocking, and running the system in a certainly lower power consumption level as well. When you press "X" when switch on the computer, the system will automatically reboot itself, after that, the system will execute the Turbo UCC function. Enabling Turbo UCC, it will automatically help you to unlock the extra CPU core to enjoy an instant performance boost, and the system performance will boost up by overclocking CPU frequency, memory frequency and all related voltage settings! Different from normal high-energy consumption for overclocking or system upgrading process, ASRock Turbo UCC can allow an energy-saving overclocking or system upgrade computing operation!
Key to Unlock CPU Core
Unlock CPU potential up to 6 cores, AMD X2 / X3 Core ⇒ X4 Core, AMD X4 Core ⇒ X6 Core
100% CPU Performance Boost!
AMD Radeon HD 4250 DirectX 10.1 Onboard Graphics, Supports ATI Hybrid CrossFireX
Key features of DirectX 10.1 include an updated shader model, improved anti-aliasing support, more flexible data access, and tighter specifications for better applicationcompatibility.
OC DNA
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
