Performance
| Motherboard form factor |
Mini ITX |
Memory
| Supported memory clock speeds |
800 MHz |
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Number of SATA II connectors |
2 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Networking features |
Gigabit Ethernet |
Graphics
| Maximum graphics adapter memory |
384 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel NM10 Express |
| Graphics |
GMA 3150 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

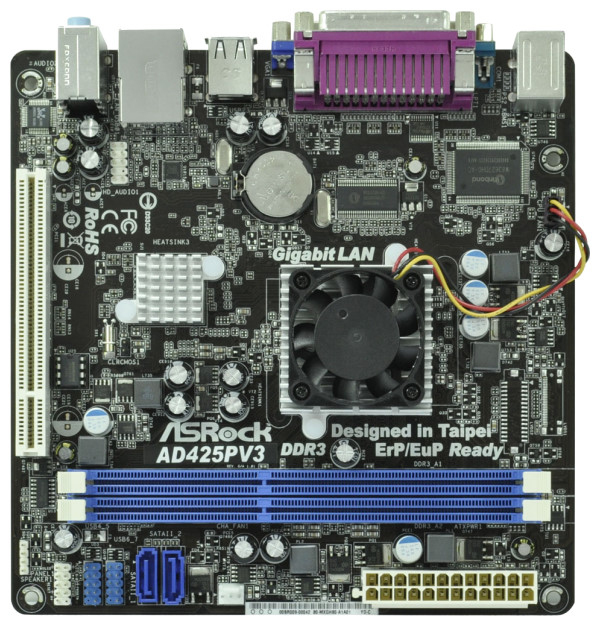

AD425PV3, Intel Atom D425 (1.8 GHz), DDR3, Intel GMA 3150, Intel NM10
- Intel® Atom™ Processor D425 (1.8 GHz)
- Solid Capacitor for CPU power
- Supports Dual Channel DDR3 800
- Intel® GMA 3150, DirectX 9.0 and Max. shared memory 384MB
- 1 x PCI slot, 2 x SATAII 3.0 Gb/s connectors, PCIE Gigabit LAN
- Supports ASRock Instant Boot, Instant Flash, OC Tuner, OC DNA, AIWI, APP Charger, SmartView
- ErP/EuP Ready
- Free Software : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
EuP / ErP Ready
EuP / ErP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP / ErP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP / ErP standard, the EuP / ErP ready motherboard and the EuP / ErP ready power supply are required. (The EuP / ErP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
