Memory
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
1 |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Number of SATA II connectors |
4 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Front panel audio connector |
Y |
| Number of EATX power connectors |
1 |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
Graphics
| Discrete graphics support |
Y |
| Graphics adapter family |
AMD |
| Maximum graphics adapter memory |
2048 MB |
| DirectX version |
11.1 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
Performance
| Motherboard chipset family |
AMD |
| Cooling type |
Passive |
| Audio system |
Realtek ALC662 |
| PC health monitoring |
Voltage, Temperature, FAN, CPU |
| Component for |
PC |
Processor
| Maximum number of SMP processors |
1 |
| Processor thermal power (max) |
100 W |
Back panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
Additionally
| Chipset |
AMD A58 FCH (Bolton D2) |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

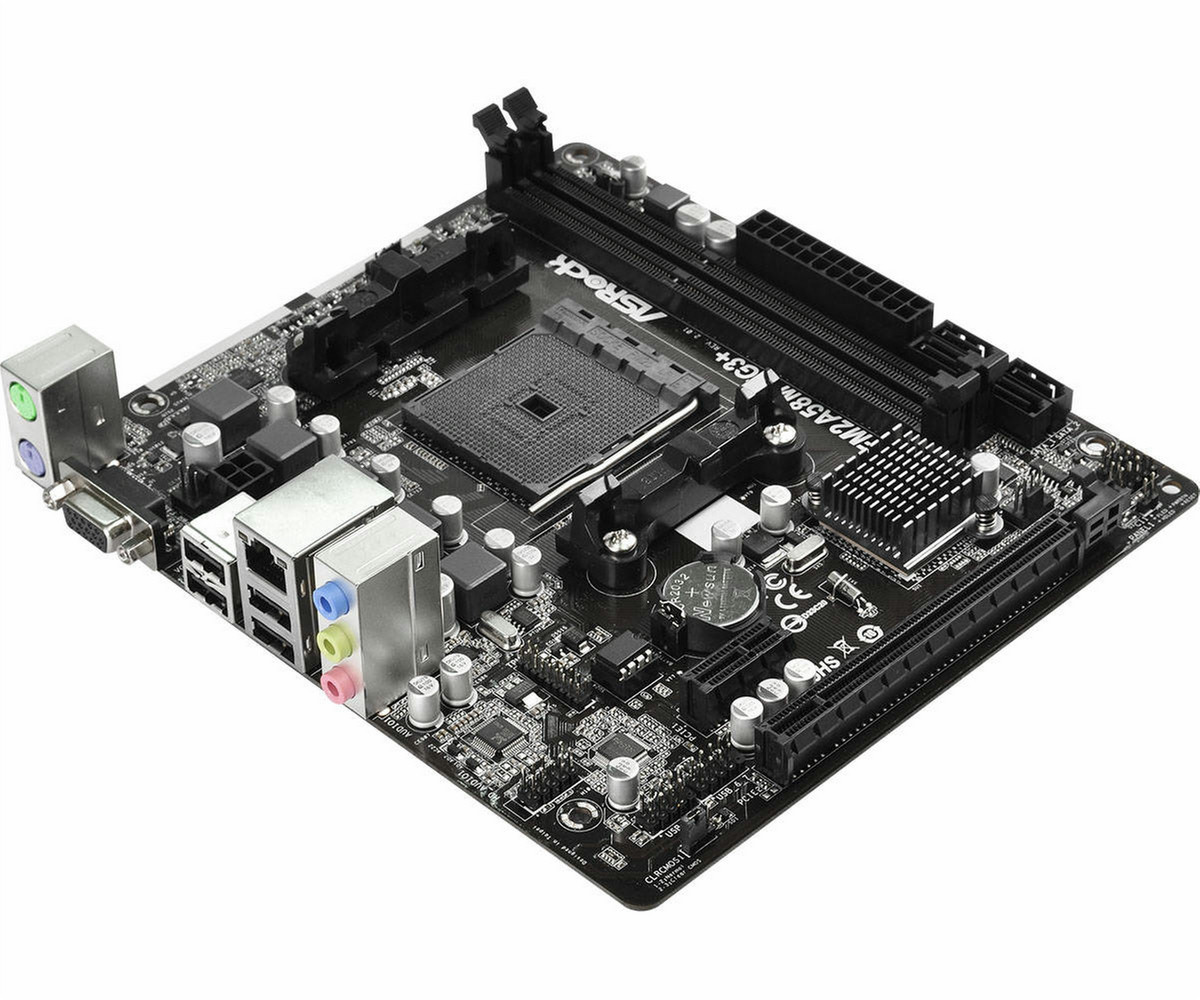

FM2A58M-VG3+ R2.0, AMD A58 FCH (Bolton-D2), Socket FM2+ / FM2, 2 x DDR3 2400+, AMD Radeon R7/R5 Series Graphics in A-series APU, 4 x SATA2 3.0 Gb/s, Micro ATX
- Supports Socket FM2+ 95W / FM2 100W processors
- All Solid Capacitor Design
- Supports Dual Channel DDR3 2400+(OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1
- Supports AMD Dual Graphics
- Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- 1 x D-Sub, 4 x SATA2, 8 x USB 2.0 (4 Front, 4 Rear)
- Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, X-Boost
