Internal I/O
| Number of SATA III connectors |
7 |
| CPU fan connector |
Y |
| Parallel port via internal header |
Y |
| Serial port headers |
1 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| Number of COM connectors |
1 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Serial port via internal header |
Y |
| USB 2.0 connectors |
3 |
| Number of chassis fan connectors |
3 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI slots |
3 |
Performance
| Motherboard chipset family |
AMD |
| Trusted Platform Module (TPM) |
Y |
| Consumer infrared headers |
Y |
| Cooling type |
Passive |
| Audio system |
Realtek ALC892 |
| PC health monitoring |
Temperature, Power supply, FAN, CPU |
| Component for |
PC |
Graphics
| Graphics adapter family |
AMD |
| Discrete graphics support |
Y |
| HDCP |
Y |
| Maximum graphics adapter memory |
2048 MB |
| DirectX version |
11.1 |
Memory
| Supported memory types |
DDR3-SDRAM |
| Unbuffered memory |
Y |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Non-ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
| Trial software |
AntiVirus Software, CyberLink MediaEspresso 6.5, Start8 |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
6 |
| HDMI ports quantity |
1 |
| Digital audio optical out |
1 |
| eSATA ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
1 |
| DVI-D ports quantity |
1 |
BIOS
| ACPI version |
1.1 |
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
Processor
| Processor thermal power (max) |
100 W |
Other features
| Number of processors supported |
1 |
Additionally
| Chipset |
AMD A88X |
| Количество слотов PCI Express |
4 |
| Ethernet LAN connection |
Y |
| Dual-link DVI |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

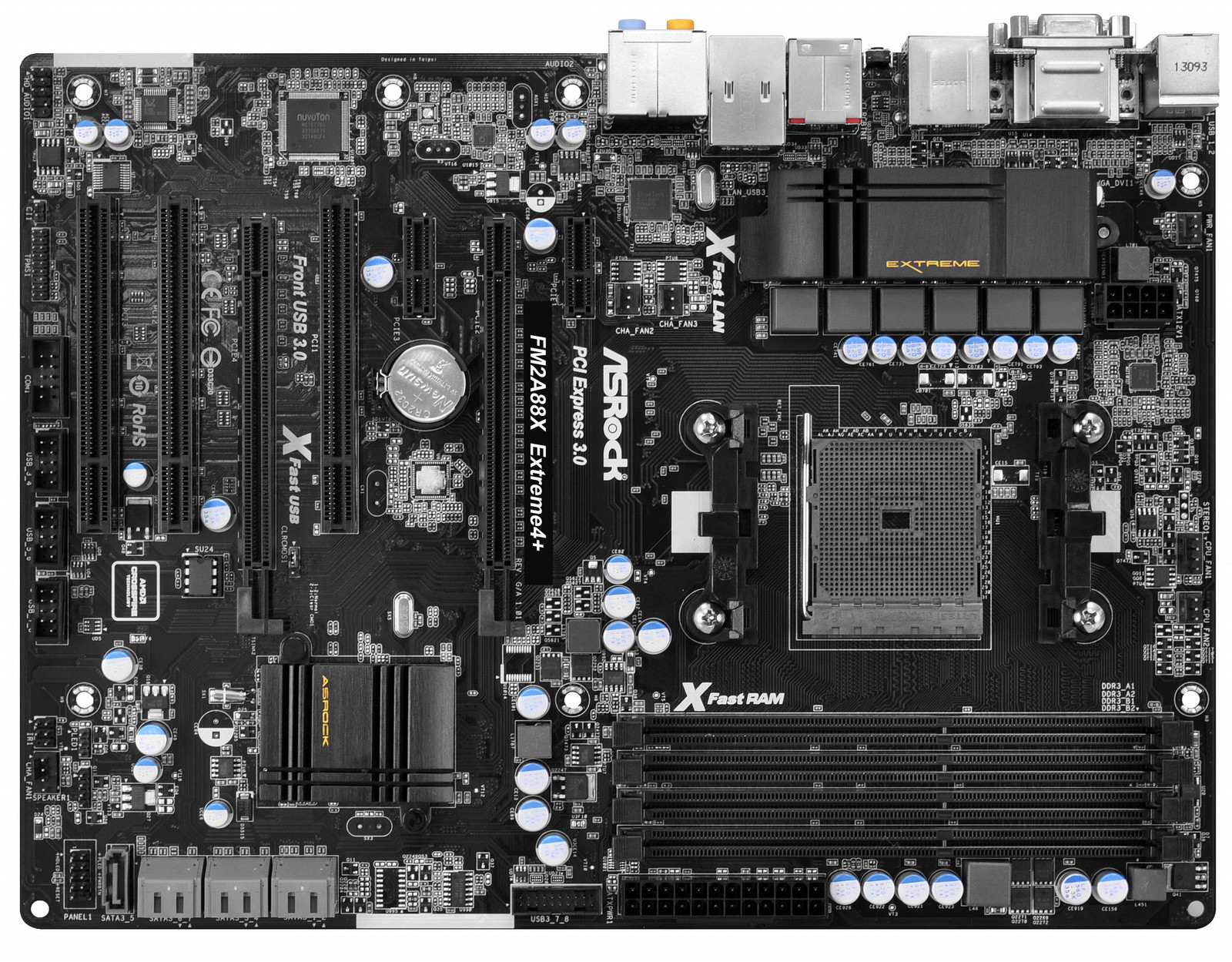

FM2A88X Extreme4+, Socket FM2+, A88X, 4x DIMM, XMP/AMP, Realtek ALC892, Gigabit Ethernet, SATAIII, USB 3.0, ATX
- A-Style : Home Cloud
- Supports Socket FM2+ 95W / FM2 100W processors
- ASRock DuraCap Design
- Supports Dual Channel DDR3 2600+(OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 3 x PCI
- Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics
- Integrated AMD Radeon HD 8000/7000 series graphics in A-series APU
- Multi VGA Output Options : D-Sub, DVI-D, HDMI
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- 7 x SATA3, 1 x eSATA, 8 x USB 3.0 (2 Front, 6 Rear), 8 x USB 2.0
- Supports A-Tuning, XFast 555, X-Boost, Easy Driver Installer, FAN-Tastic Tuning, USB Key
