Performance
| Motherboard form factor |
Micro ATX |
| Motherboard southbridge |
Intel ICH7 |
| Motherboard chipset family |
Intel |
| Audio system |
VIA VT1705 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
533, 667, 800, 1066, 1333 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR2-SDRAM, DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
1 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Floppy disk drive connector |
Y |
| Number of SATA II connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
10 |
| Maximum graphics adapter memory |
1759 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Processor
| Processor system buses supported |
533, 800, 1066, 1333 MHz |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel G41 |
| Intel HD Audio Technology |
Y |
| Graphics |
GMA X4500 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

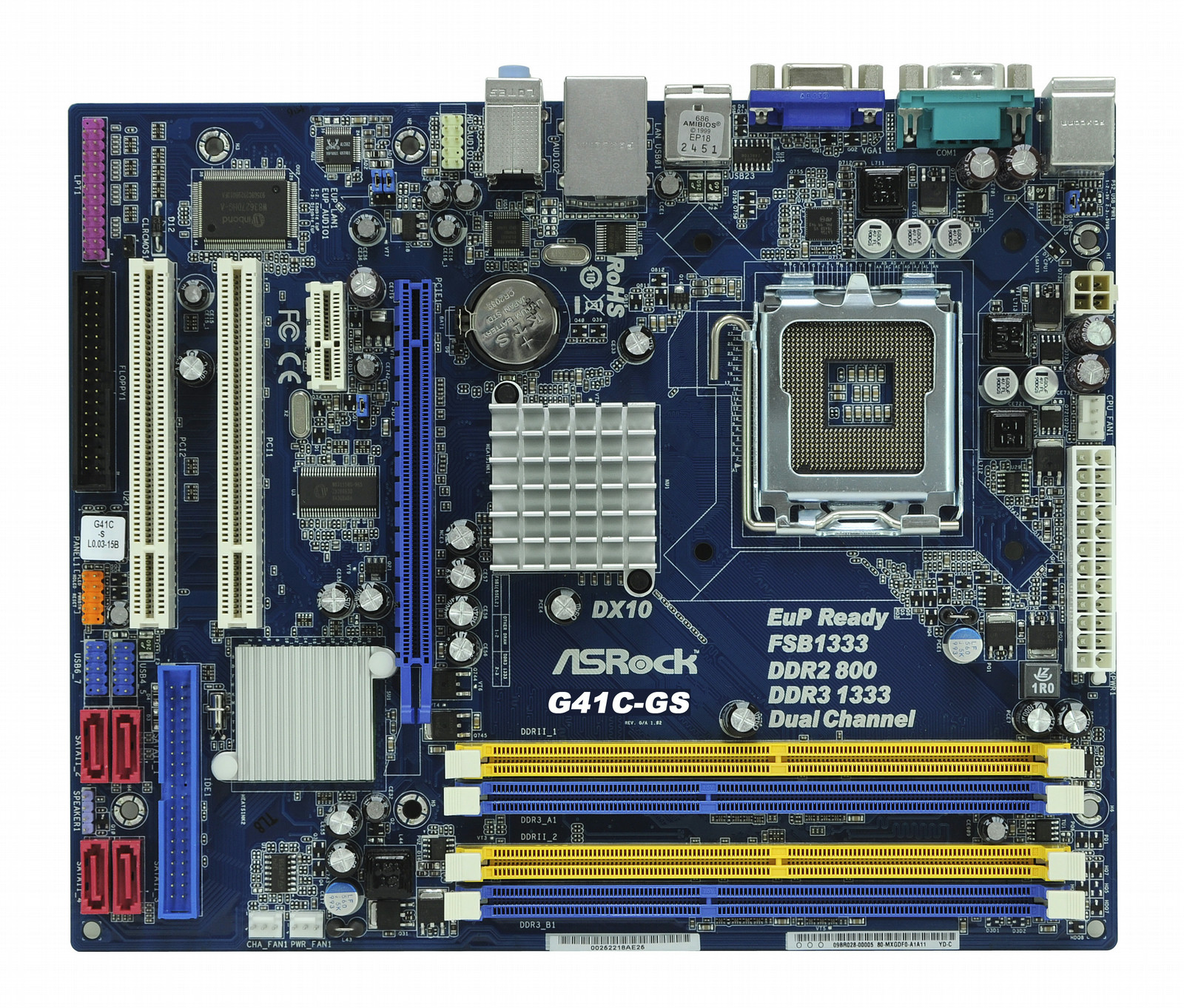

G41C-GS - LGA 775, Intel Core 2 Extreme/Core 2 Quad/Core 2 Duo/Pentium Dual Core/Celeron Dual Core/Celeron, FSB1333/1066/800/533 MHz, 2 x DDR3 1333/1066/800MHz, Intel Graphics Accelerator X4500, Gigabit Ethernet, DirectX 10, Micro ATX
- Supports FSB1333/1066/800/533 MHz CPUs;
- Supports Dual Channel DDR3 1333(OC) + DDR2 800;
- Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
- PCIE Gigabit LAN;
- EuP Ready;
- Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies;
- Supports Instant Boot, Instant Flash, OC DNA, ASRock OC Tuner (Up to 143% CPU frequency increase);
- Supports Intelligent Energy Saver (Up to 20% CPU Power Saving);
- Free Bundle : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial.
