Performance
| Motherboard form factor |
Micro ATX |
| Motherboard southbridge |
Intel ICH7 |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
800, 1066, 1333 MHz |
| Non-ECC |
Y |
| Memory channels |
Dual |
| Supported memory module capacities |
1GB, 2GB, 4GB |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
1 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Processor
| Maximum number of SMP processors |
1 |
| Processor system buses supported |
533, 800, 1066, 1333 MHz |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of IEEE1394 connectors |
1 |
| Floppy disk drive connector |
Y |
| Number of SATA II connectors |
4 |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
Graphics
| Maximum graphics adapter memory |
1759 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
2 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel G41 |
| Graphics |
GMA X4500 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

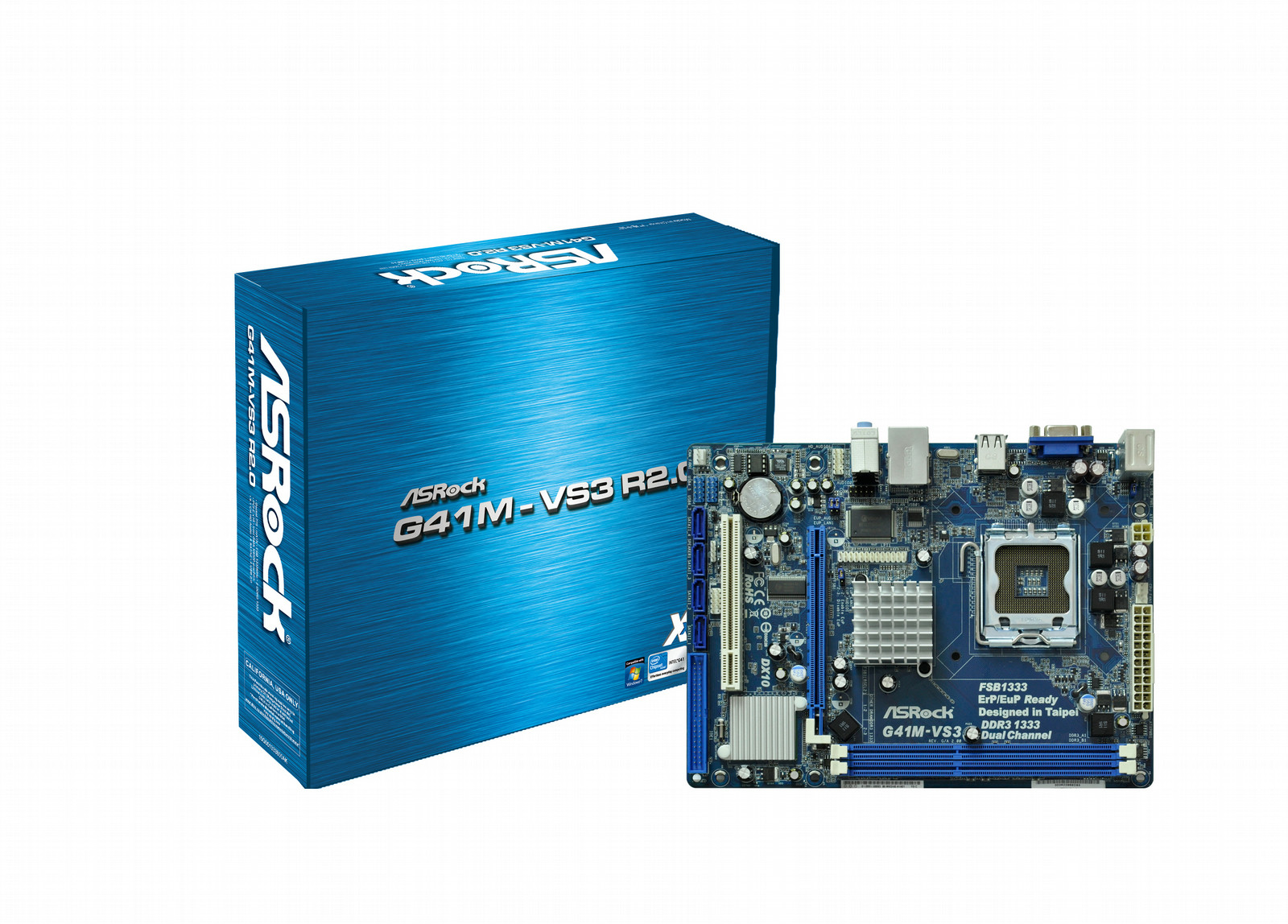

G41M-VS3 R2.0, Intel G41, Intel ICH7, LGA 775, DDR3, SATA II, USB 2.0, Intel GMA X4500, Fast Ethernet, PCI, PCI-E, micro ATX
ASRock XFast USB Technology - Faster Than Your Imagination!
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 2.0 performance up to 384.99%!
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
