Back panel I/O ports
| PS/2 ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| COM ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
Performance
| Audio system |
Realtek ALC887 |
| Cooling type |
Passive |
| PC health monitoring |
Voltage, Temperature, FAN, CPU |
| Motherboard chipset family |
AMD |
| Component for |
Mini PC |
Memory
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
| Memory slots type |
DIMM |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| CPU fan connector |
Y |
| Number of SATA III connectors |
2 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
EFI AMI |
Packaging content
| Quick installation guide |
Y |
| Drivers included |
Y |
Graphics
| Discrete graphics support |
Y |
| Graphics adapter family |
AMD |
| On-board graphics adapter |
Y |
| Maximum graphics adapter memory |
2048 MB |
| DirectX version |
11.1 |
Expansion slots
| PCI Express x16 (Gen 2.x) slots |
1 |
Processor
| Maximum number of SMP processors |
1 |
Additionally
| Ethernet LAN connection |
Y |
| Graphics |
Radeon HD 8330 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

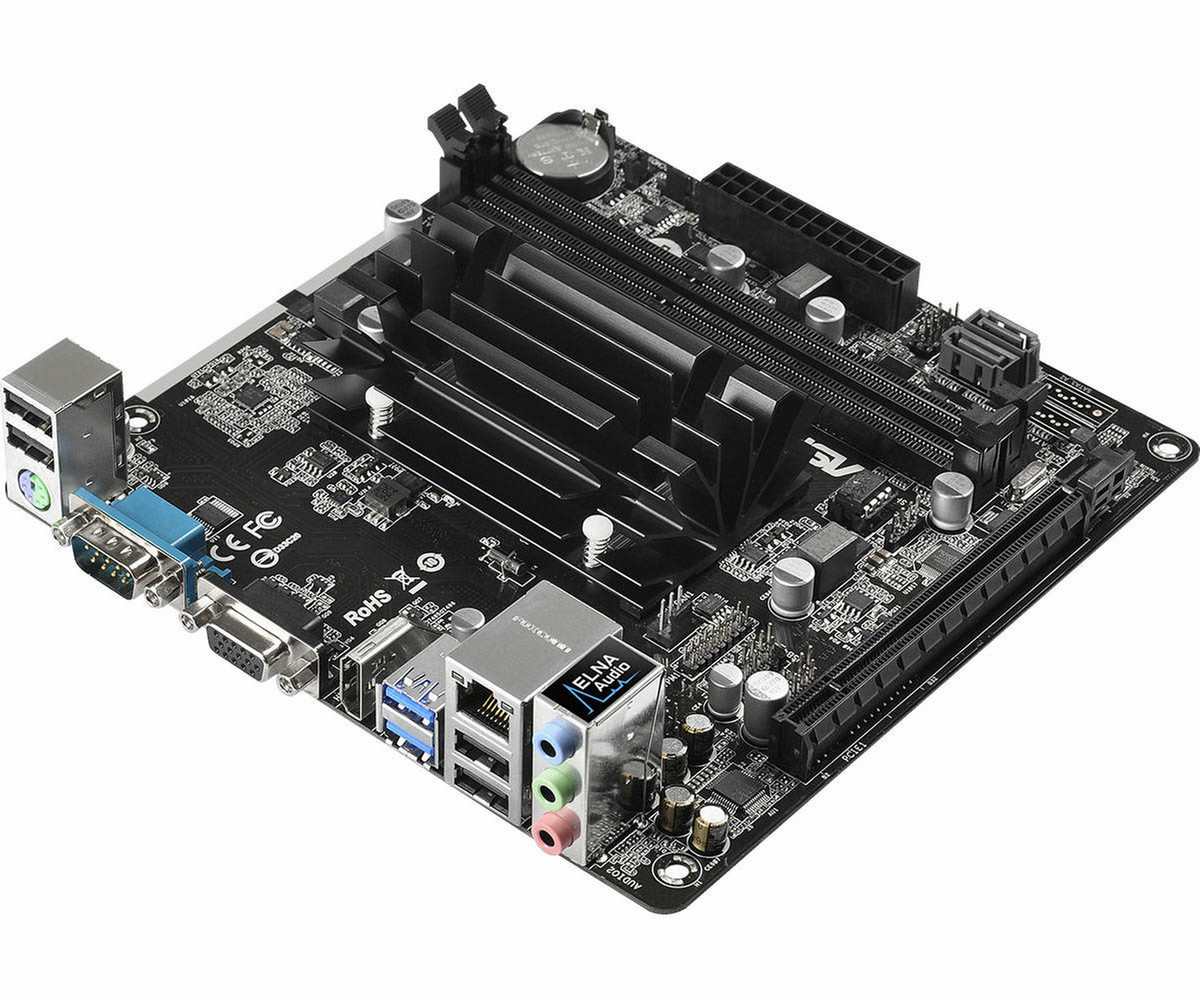

QC5000M-ITX/PH, AMD FT3 Kabini A4-5000 Quad-Core APU, 2 x DDR3 1600, AMD Radeon HD 8330 Graphics, 2 x SATA3 6.0 Gb/s, Mini-ITX
- AMD FT3 Kabini A4-5000 Quad-Core APU
- All Solid Capacitor design
- Supports DDR3 1600
- 1 PCIe 2.0 x16
- Graphics Output Options : D-Sub, HDMI
- Integrated AMD Radeon™ HD 8330 Graphics, DX11.1, PS5.0
- 2 x USB 3.0, 8 x USB 2.0 (4 Front, 4 Rear), 2 x SATA3, 1 x COM Port
- Realtek Gigabit LAN
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports ASRock Full Spike Protection, USB Key
