Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC662 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
32 MB |
| BIOS type |
AMI |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of SATA II connectors |
4 |
| EPS power connector (8-pin) |
Y |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Other features
| Controller interface type |
SATA2 |
| Number of processors supported |
1 |
Networking
| Wake-on-LAN ready |
Y |
| Networking features |
10/100/1000Mbps |
Graphics
| Maximum graphics adapter memory |
1759 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Packaging content
| Trial software |
AntiVirus, ASRock Suite |
| Drivers included |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| PCI Express slots version |
2.0 |
Additionally
| Chipset |
Intel H61 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

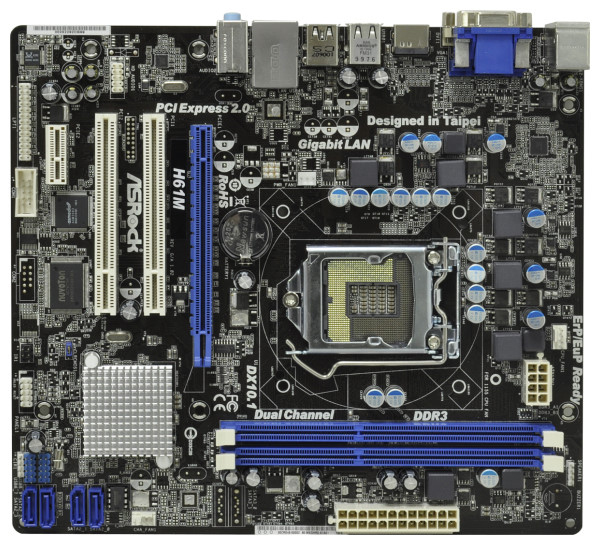

Intel Core i7 / i5 / i3 - LGA1155, 2x DDR3 DIMM (1333/1066 non-ECC,16GB max), 32Mb AMI UEFI Legal BIOS, Intel HD Graphics 2000/3000, 6x USB2.0, 2x PS/2, D-Sub, DVI-D, HDMI, PCIEx1 Gigabit LAN Atheros AR8151 (10/100/1000Mbps), Micro ATX
- Solid Capacitor for CPU Power.
- Supports Intel K-Series unlocked CPU.
- Supports Dual Channel DDR3 1333.
- Supports Intel HD Graphics 2000/3000.
- Multi VGA Output options: D-Sub, DVI-D and HDMI.
- Supports XFast USB, AXTU, UEFI, Instant Boot, Instant Flash, APP Charger, SmartView.
- Combo Cooler Option (C.C.O.).
ASRock XFast USB Technology - Faster Than Your Imagination!
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 2.0 performance up to 376.2%!
Intel HD Graphics Built-in Visuals
Intel Quick Sync Video
Intel Quick Sync Video saves valuable time for PC users who want to create and edit video, synchronize it with other devices, and share it–at home and on the internet. Intel Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding.
Intel InTru 3D
Enjoy the ultimate 3D visual experiences–seamlessly–from your PC. Now you can watch your favorite 3D movies with Blu-ray Stereo 3D playback using active shutter 3D glasses. It delivers it all in 1080p full, high-definition resolution on your TV over HDMI 1.4.
Intel Clear Video HD Technology
Intel Clear Video HD Technology (Intel CVT HD) enables rich media experiences with picture perfect images by using a host of advanced graphics technologies that support optimized, high-definition video playback and sharp image quality.
Intel HD Graphics 2000/3000
Intel HD Graphics is now built right into the processor! This integration means lower latencies and leads to superior mainstream gaming and enhanced 3D experiences.
Intel Advanced Vector Extensions (AVX)
Intel Advanced Vector Extensions (Intel AVX) gives more computing power to application developers with a new, 256 bit instruction set extension to Intel SSE.
C.C.O. (Combo Cooler Option)
C.C.O., stands for Combo Cooler Option, is another exclusive hardware design on ASRock boards. C.C.O. provides the flexible options to adopt different CPU cooler types and matches your socket LGA775, LGA1155 / LGA1156 CPU cooler in the respective holes. Once again, ASRock has successfully expanded the utilization of PCB by the exclusive C.C.O. design.
AXTU - The All-in-1 Tuning Software
ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to overclock the GT frequency which helps to boost up the graphics performance and some voltage settings for optimal system performance. In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.
Graphical UEFI – The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.*
*Windows Vista 64bit or Windows 7 64bit OS is required.
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
