Networking
| Bluetooth |
Y |
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Intel Extreme Memory Profile (XMP) |
Y |
| Audio system |
Realtek ALC1150 8-Channel High Definition |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133, 2400, 2666, 2800, 3000, 3200, 3300 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Supported memory module capacities |
16GB |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
128 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS button |
Y |
| ACPI version |
5.0 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
4 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Number of SATA Express connectors |
1 |
| Thunderbolt headers |
1 |
| Number of M.2 (M) slots |
1 |
Graphics
| Maximum graphics adapter memory |
512 MB |
| On-board graphics adapter |
Y |
| Discrete graphics support |
Y |
| Number of displays supported |
3 |
Back panel I/O ports
| WiFi-AP antenna jack |
1 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
6 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPort version |
1.2 |
Expansion slots
| PCI Express x1 slots |
4 |
| PCI Express x16 (Gen 3.x) slots |
3 |
Processor special features
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel Z170 |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

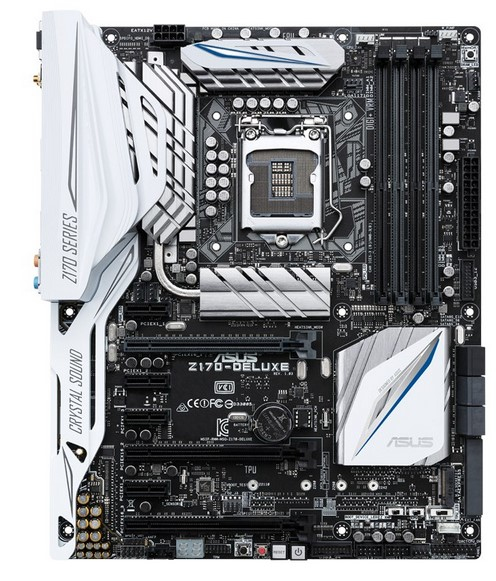

ASUS Z170-DELUXE. Supported memory types: DDR4-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3300 MHz. Processor family: Intel, Compatible processor series: Celeron,Core i3,Core i5,Core i7,Pentium, Processor socket: LGA 1151 (Socket H4). Supported storage drive interfaces: Serial ATA III. LAN controller: Intel I211-AT, Ethernet interface type: Gigabit Ethernet, Wi-Fi standards: 802.11a,802.11ac,802.11b,802.11g,802.11n. Component for: PC, Motherboard chipset family: Intel, Motherboard chipset: Intel Z170
