Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
Y |
| PC health monitoring |
CPU, FAN, Power supply, Temperature |
| Audio system |
Realtek ALC662 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
1.1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| Number of SATA II connectors |
4 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
1760 MB |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
Other features
| Number of processors supported |
1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Intel Core i3/i5/i7 series |
i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx |
Additionally
| Chipset |
Intel H61 |
| Количество слотов PCI Express |
2 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

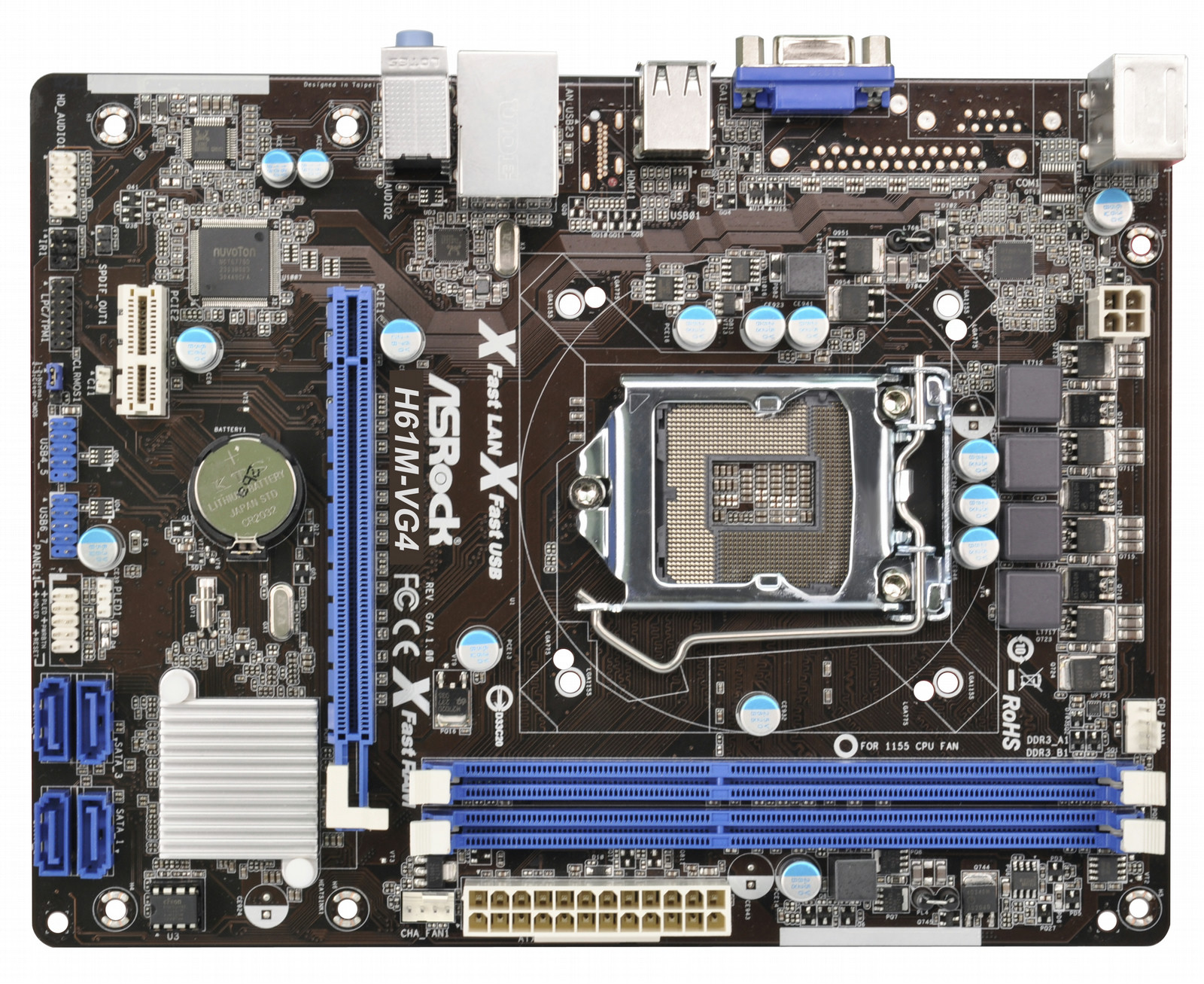

LGA1155, H61, 2x DIMM, Intel XMP, Gigabit LAN, PCI-E 3.0, SATAII, D-Sub, USB 2.0, Micro-ATX
- 100% All Solid Capacitor design
- Supports Dual Channel DDR3 1600
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1
- Supports Intel® HD Graphics with Built-in Visuals
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Supports ASRock XFast 555, Fast Boot, Restart to UEFI, Dehumidifier, OMG, Internet Flash
- Supports Intel® Smart Connect Technology, Intel® Rapid Start Technology
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
Intel® Smart Connect Technology
Intel® Smart Connect Technology keeps content always up-to-date! It means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. Smart Connect will periodically wake up the PC while in a sleep state and check updates for things like email, Twitter, Facebook, etc. No more waiting for the latest world news or friends’ updates to be delivered—just enable this function and you’re up-to-date and ready to go.
Intel® Rapid Start Technology
Intel® Rapid Start Technology gets your device up and running faster from even the deepest sleep, saving time and battery life. It quickly returns where you left off with a PC that goes from deep-sleep to full awake in a flash. The ultra-responsive capability gives your device the power to quickly resume to Windows® 7 OS within few seconds and ensures ultra-low power consumption when on standby. With Intel® Rapid Start Technology, users can jump right back into everything they were doing!
Intel® HD Graphics Built-in Visuals
Intel® HD Graphics, simplifies your designs by eliminating additional discrete graphics hardware, while integrating stunning visuals and performance for immersive gaming.
