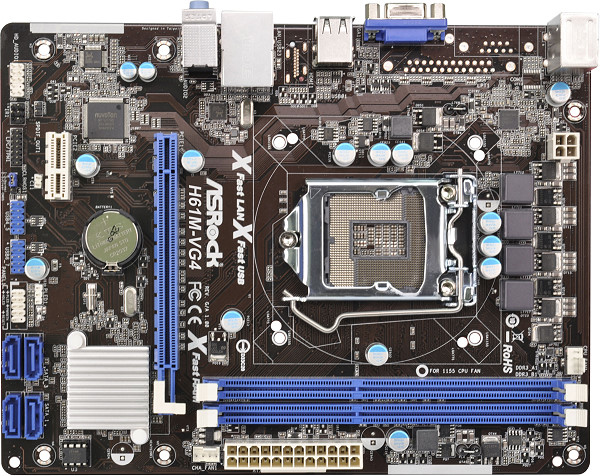

Asrock H61M-VG4 Intel H61 Socket H2 (LGA 1155) Micro ATX motherboard

Intel Core™ i7/i5/i3/Xeon/Pentium/Celeron, Intel H61, 2 x DDR3 DIMM, AMI UEFI, PCI Express 3.0 x16, PCI Express 2.0 x1, 4 x SATA2, PS/2 x 2, D-Sub, 4 x USB 2.0, RJ-45 LAN, Micro ATX 100% All Solid Capacitor design
Supports Dual Channel DDR3 1600
1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1
Supports Intel® HD Graphics with Built-in Visuals
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Supports ASRock XFast 555, Fast Boot, Restart to UEFI, Dehumidifier, OMG, Internet Flash
Supports Intel® Smart Connect Technology, Intel® Rapid Start Technology

Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds* to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

*The boot time may vary with a different configuration.

Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

All Solid Capacitor Design
All the capacitors on this board are built with 100% all solid capacitors. With these solid caps, ASRock’s motherboards are allowed to perform more stably and ensure longer lifetime.

Dehumidifier
Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

Google Chrome Browser & Toolbar
Chrome is a fast, simple, and secure web browser, built for the modern web. Google Toolbar is designed to help you find what you're looking for quickly and discover new things along the way. Now ASRock has both Chrome and Google Toolbar bundled with our motherboards so users may enjoy better internet surfing experiences.

ASRock OMG (Online Management Guard)
Fast, Easy and Free – ASRock OMG technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users. Normally, ISPs (Internet Service Provider) will charge for internet curfew service, which controls “all” the PCs connected at home. However, ASRock OMG is a free tool for controlling internet access of each single PC. Parents can easily control internet access through the BIOS setup to protect their kids from using the Internet at inappropriate times, and meanwhile, enjoy their own internet space.

Intel® Smart Connect Technology
Intel® Smart Connect Technology keeps content always up-to-date! It means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. Smart Connect will periodically wake up the PC while in a sleep state and check updates for things like email, Twitter, Facebook, etc. No more waiting for the latest world news or friends’ updates to be delivered—just enable this function and you’re up-to-date and ready to go.

* Intel® Smart Connect Technology is only supported under Windows® 7 OS or later versions.

Intel® Rapid Start Technology
Intel® Rapid Start Technology gets your device up and running faster from even the deepest sleep, saving time and battery life. It quickly returns where you left off with a PC that goes from deep-sleep to full awake in a flash. The ultra-responsive capability gives your device the power to quickly resume to Windows® 7 OS within few seconds and ensures ultra-low power consumption when on standby. With Intel® Rapid Start Technology, users can jump right back into everything they were doing!

* Intel® Rapid Start Technology is only supported under Windows® 7 OS or later versions.

Intel® HD Graphics Built-in Visuals
Intel® HD Graphics, simplifies your designs by eliminating additional discrete graphics hardware, while integrating stunning visuals and performance for immersive gaming.

Note: Intel® HD Graphics Built-in Visuals is supported only with processors which are GPU integrated.

Next-Gen PCI-E 3.0 Support
This ASRock motherboard supports the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth of the next-gen PCI Express 3.0 VGA cards, thus providing ultimate graphics performance.

Get PCI-E 3.0 Benefits
• Higher bit rate - 8.0GT/s
• Higher bandwidth per lane - 1GB/s
• Higher efficiency - 98.5% encoding efficiency
• 100% backward compatible with previous PCI-E 2.0 / 1.0 standard

Note: PCIe Gen3 is supported on 3rd Generation of Intel® Core i5 and Core i7 CPUs.

Internet Flash
Updating the UEFI is easier than ever with ASRock Internet Flash! Simply by a few clicks it searches for available UEFI firmware updates from ASRock's servers, then it automatically downloads and flashes the latest UEFI file within the UEFI setup utility without having to enter Windows® OS.

Crashless BIOS
ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS update process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.

C.C.O. (Combo Cooler Option)
C.C.O. provides the flexible option to adopt three different CPU cooler types, Socket LGA 775*, LGA 1155 and LGA 1156.
