Technical details
| Intel Virtualization Technology (VT-x) |
Y |
| Form factor |
mini ITX |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Number of displays supported (on-board graphics) |
3 |
Back panel I/O ports
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| S/PDIF out port |
Y |
| PS/2 ports quantity |
1 |
| DVI-D ports quantity |
1 |
Processor
| Processor cores |
4 |
| Processor frequency |
1.6 GHz |
Performance
| Component for |
PC |
| Audio system |
Realtek ALC892 |
| Motherboard chipset family |
Intel |
| Intel Rapid Storage Technology |
N |
Networking
| Wi-Fi |
N |
| Bluetooth |
N |
| Wake-on-LAN ready |
Y |
Processor special features
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Intel vPro Technology |
N |
| Intel® OS Guard |
N |
| Intel® Secure Key |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Response Technology |
N |
| Intel Clear Video Technology |
Y |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
Y |
| Conflict Free |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Trusted Execution Technology |
N |
| Thermal Monitoring Technologies |
Y |
Memory
| Supported memory types |
DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
| Memory slots type |
SO-DIMM |
| Memory channels |
Dual |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| Number of SATA III connectors |
4 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
Graphics
| HDCP |
Y |
| Graphics adapter family |
Intel |
| DirectX version |
11.1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| Mini PCI Express slots |
1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Graphics |
HD Graphics |
| Intel HD Audio Technology |
Y |
| InTru™ 3D Technology |
N |

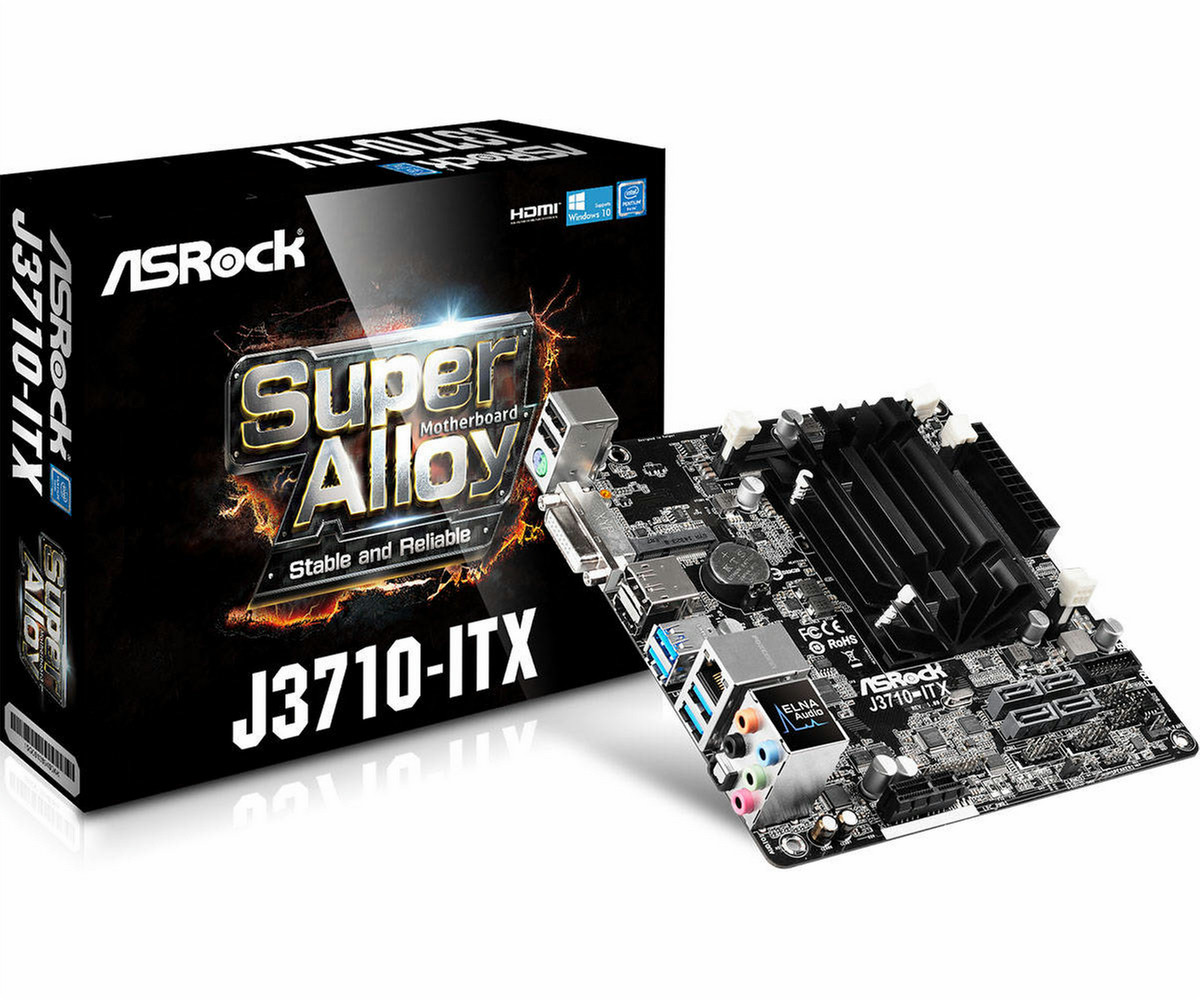

Intel Quad-Core Pentium Processor J3710, DDR3/DDR3L, 16GB, 3840 x 2160, UEFI AMI BIOS, Mini ITX
- ASRock Super Alloy
- Intel® Quad-Core Pentium® Processor J3710
- Solid Capacitor design
- Supports Dual Channel DDR3/DDR3L SO-DIMM 1600
- 1 PCIe 2.0 x1, 1 Half-Size Mini-PCIe
- 1 x TPM Header, 1 x COM Port Header
- Graphics Output Options :DisplayPort, DVI-D, HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 6 USB 3.0 (2 Front, 4 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
<b>High Density Glass Fabric PCB</b>
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
<b>HEVC (H.265) Decoding + 4K</b>
Supports HEVC (H.265) decoding to provide substantially improved video quality. Plus a minimum of 3840 x 2160 pixels with 4K resolution.
<b>Triple Monitor</b>
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
<b>Intel® Quad-Core Pentium® Processor J3710 (Up to 2.64 GHz)</b>
Improved performance, lower power consumption, and new multimedia capabilities.
<b>Supports Standard & Low Voltage SO-DIMMs</b>
Capable of supporting both standard and low-voltage SO-DIMMs.
<b>16GB Memory Support</b>
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.
<b>Half-size Mini PCIe</b>
A compact and convenient PCIe interface on the motherboard that can be used for connecting WiFi cards or other add-on cards.
<b>Solid Capacitor Design</b>
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
<b>ELNA Audio Caps</b>
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
<b>Live Update & APP Shop</b>
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
<b>Full Spike Protection</b>
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
<b>USB Key</b>
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
<b>Restart to UEFI</b>
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
