Performance
| Motherboard form factor |
Micro ATX |
| Motherboard southbridge |
Intel ICH5 |
| Motherboard chipset family |
Intel |
| Audio output channels |
5.1 channels |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
266, 333, 400 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
0.5 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| PS/2 ports quantity |
2 |
| USB 2.0 ports quantity |
6 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Supported storage drive interfaces |
Parallel ATA, Serial ATA |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Audio Modem Rise (AMR) slot |
Y |
Graphics
| DirectX version |
8.0 |
| Maximum graphics adapter memory |
64 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Parallel processing technology support |
Not supported |
Packaging content
| Cables included |
SATA |
| Drivers included |
Y |
| Quick installation guide |
Y |
Expansion slots
| PCI slots |
3 |
| AGP x8 slots |
1 |
Processor
| Processor system buses supported |
400, 533, 800 MHz |
| Processor socket |
Socket 478 |
| Compatible processor series |
Celeron D, Pentium 4 |
Networking
| LAN controller |
Realtek RTL8101L |
| Ethernet interface type |
Fast Ethernet |
Weight & dimensions
| Depth |
198 mm |
| Width |
244 mm |
Additionally
| Chipset |
Intel 865G |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

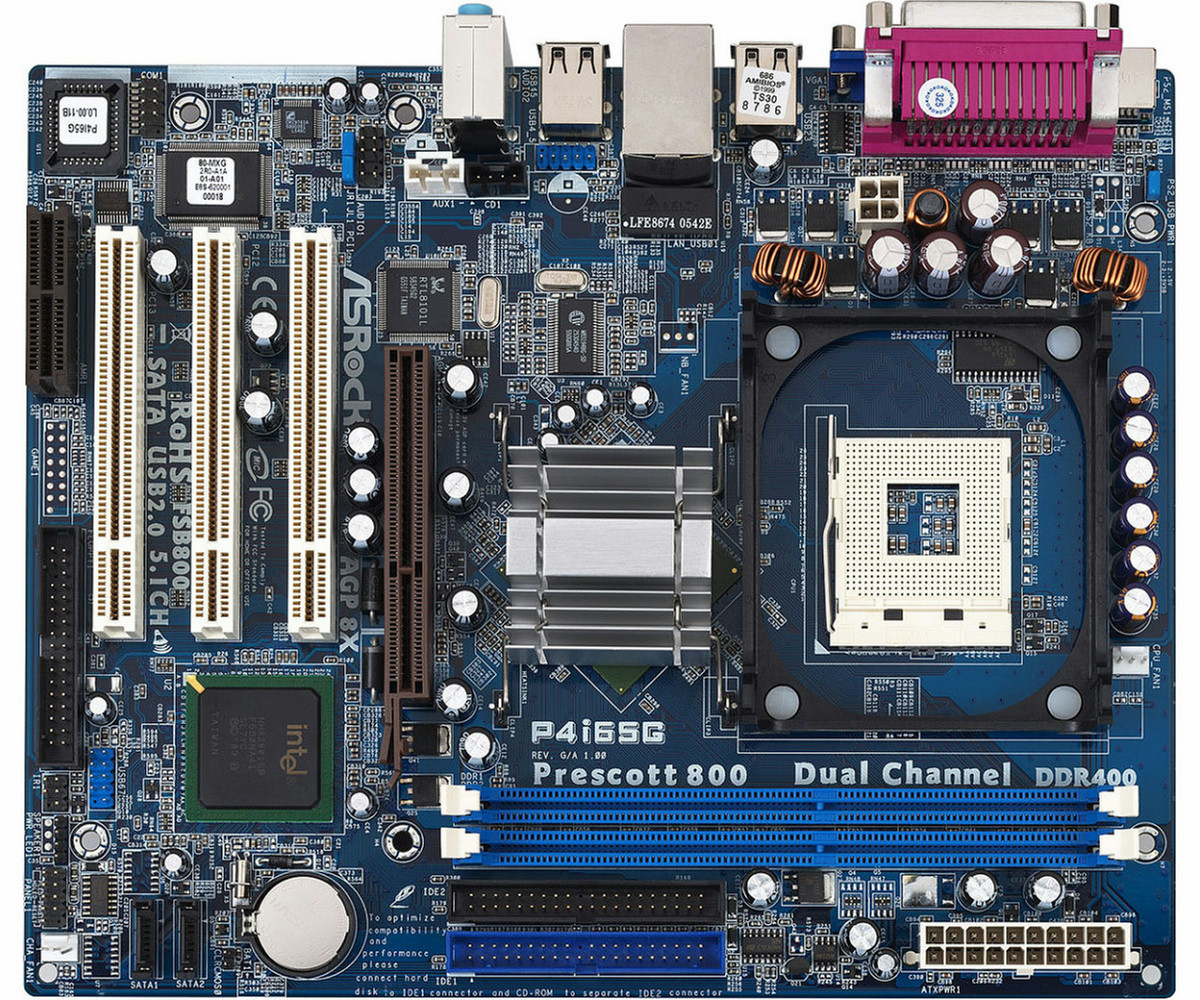

Micro ATX, Socket 478, DDR, Intel 865G, AMI BIOS
- FSB800/533MHz processor, and H-T Technology
- Supports Dual Channel DDR400 (DDR x 2 DIMMs)
- Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses
- 1 x AGP 8X slot
- Supports Integrated Intel Extreme Graphics 2 and DirectX 8.0
- Hybrid Booster - Safe Overclocking Technology
- 2 ports of SerialATA 1.5Gb/s, 2 ATA100 IDE ports
- 5.1 Channel Audio, 10/100 Ethernet LAN
- ASRock I/O Plus: 6 ready-to-use USB2.0 ports
