Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC1150 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133, 2400, 2800, 2933, 3200 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Quad |
| Memory slots type |
DIMM |
| Maximum internal memory |
128 GB |
BIOS
| BIOS memory size |
32 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
1.1 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
10 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
3 |
| Front panel audio connector |
Y |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
3 |
Back panel I/O ports
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
2 |
| PS/2 ports quantity |
2 |
| S/PDIF out port |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
Processor special features
| Intel® Turbo Boost Technology |
2.0 |
Additionally
| Chipset |
Intel X99 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

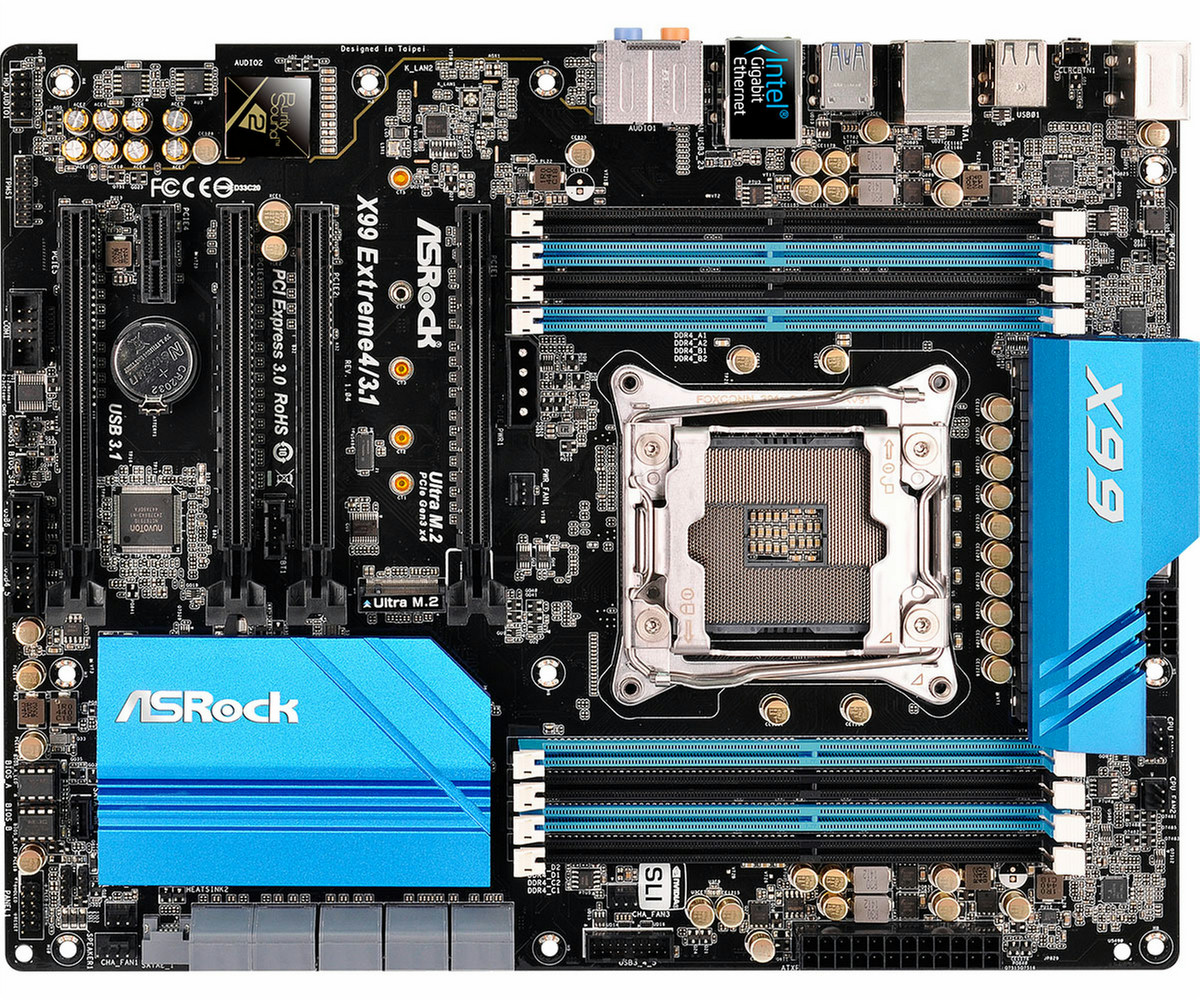

X99 Extreme4/3.1 - Quad Channel DDR4 3200+(OC), 3xPCIe 3.0 x16, 1x PCIe 2.0 x16, 1xPCIe 2.0 x1, 7.1 CH HD Audio, 2xUSB 3.1
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket
- X Series OC Socket, Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3200+(OC)
- 3 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX™ and NVIDIA® 3-Way SLI™
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
- Intel® Gigabit LAN
- 10 SATA3, 1 eSATA, 1 SATA Express, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 10Gb/s (1 x Type-A + 1 x Type-C) (Supported by the bundled ASRock USB 3.1/A+C), 6 USB 3.0 (2 Front, 4 Rear), 8 USB 2.0 (4 Front, 4 Rear)
- 1 COM Port Header, 1 TPM Header, 1 Thunderbolt™ AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop
