Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| PC health monitoring |
CPU, FAN, Power supply, Temperature |
| Audio system |
Realtek ALC892 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 1866, 2133, 2400, 2800, 2933 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
EFI AMI |
| ACPI version |
1.1 |
Processor
| Maximum number of SMP processors |
1 |
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
3 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11.1 |
| Maximum graphics adapter memory |
1792 MB |
| On-board graphics adapter |
N |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Wi-Fi |
N |
| Bluetooth |
N |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel Z97 |
| Graphics |
HD Graphics 4000 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

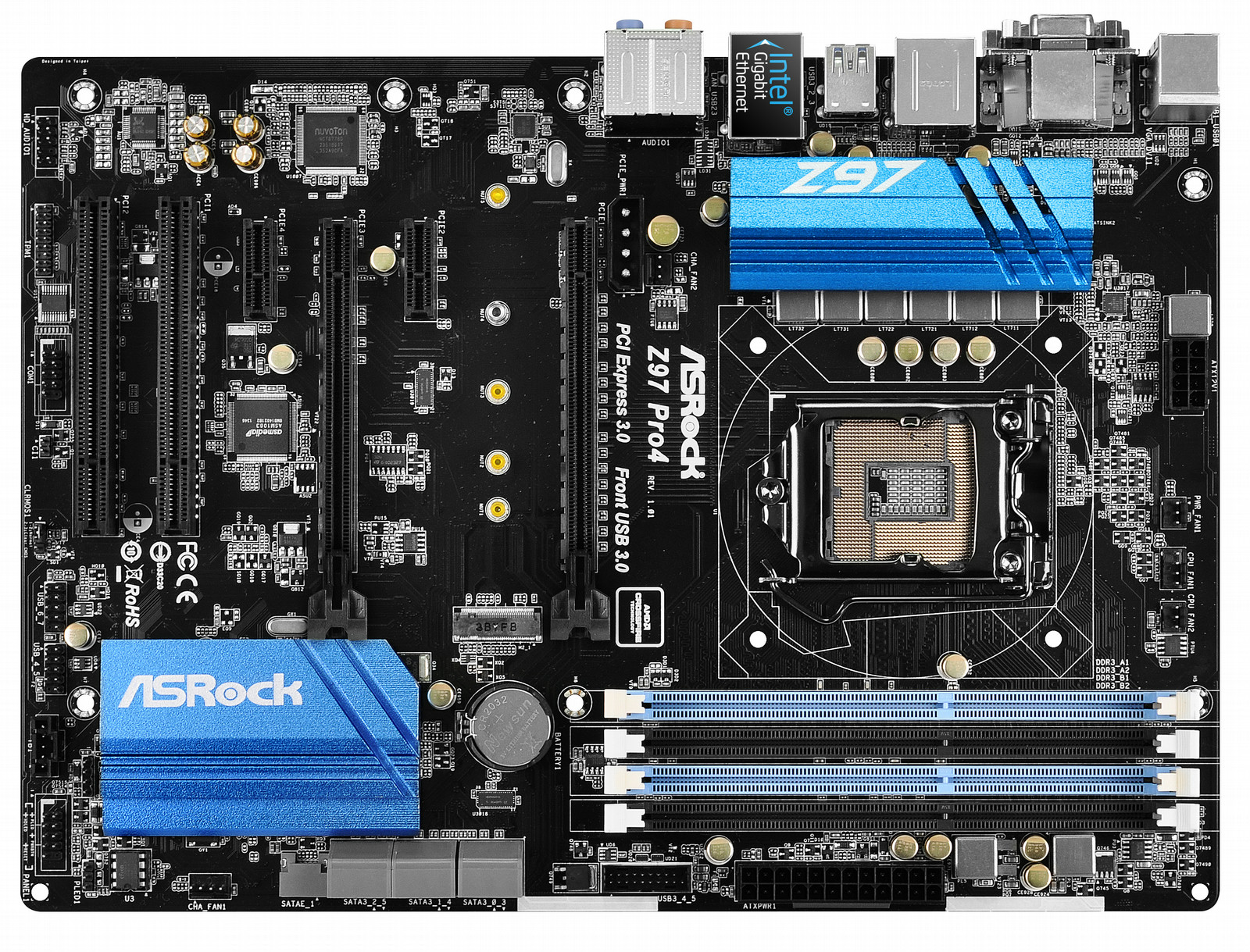

Z97 Pro4, Intel Z97, Socket 1150, 4th Generation Intel Core i7/i5/i3/Pentium/Celeron, 4 x DDR3 3100+, 2 x PCI Express x16, 6 x SATA3, 1 x M.2, Gigabit LAN, ATX
Premium Alloy Choke.
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
NexFET MOSFET for Memory Power.
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 mΩ, delivering higher efficiency and lower temperature.
12K Platinum Caps.
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, these platinum capacitors have 20% longer lifespans and provide more stability and reliability.
Sapphire Black PCB.
ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
