Performance
| Motherboard form factor |
ATX |
| Audio system |
ALC887 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Non-ECC |
Y |
| Memory channels |
Dual |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
32 MB |
| ACPI version |
2.0a |
Other features
| Manageability features |
WOL by PME, WOR by PME, PXE |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
4 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
N |
Expansion slots
| PCI slots |
3 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
2 |
| PCI Express slots version |
2.0 |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel H67 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

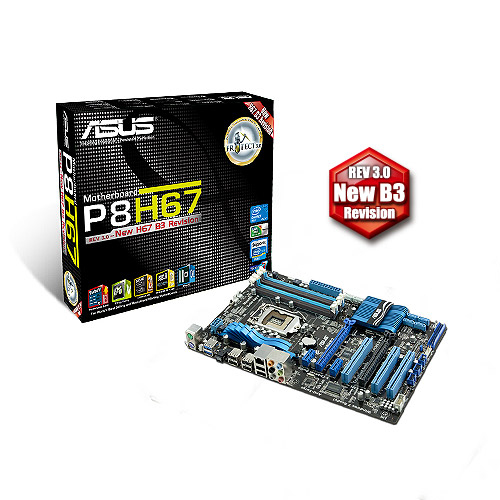

Intel Socket 1155, Core i7/Core i5/Core i3, Intel H67, ATX, 4x DIMM Max. 32GB DDR3 Non-ECC, 4x SATA 3.0 Gb/s, 2x SATA 6Gb/s, 9x USB 2.0, 2x USB 3.0
LGA1155 socket for Intel® Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors
This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world.
Intel® H67 Express Chipset
The Intel® H67 Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H67 provides 2 SATA 6.0 Gb/s and 4 SATA 3.0 Gb/s ports for faster data retrieval at double the bandwidth of current bus systems.
Quad-GPU CrossFireX™ Support
The motherboard’s powerful Intel® H67 platform optimizes PCIe allocation in multiple-GPU configurations of CrossFireX™. This allows you to enjoy a never before-experienced brand new gaming style.
Dual-Channel DDR3 1333 / 1066MHz support
The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
EPU
Tap into the world’s first real time PC power saving engine through AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity.
MemOK
!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of the button to patch memory issues. MemOK! determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time.
AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
Auto Tuning
Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet stable overclocking results with Auto Tuning!
