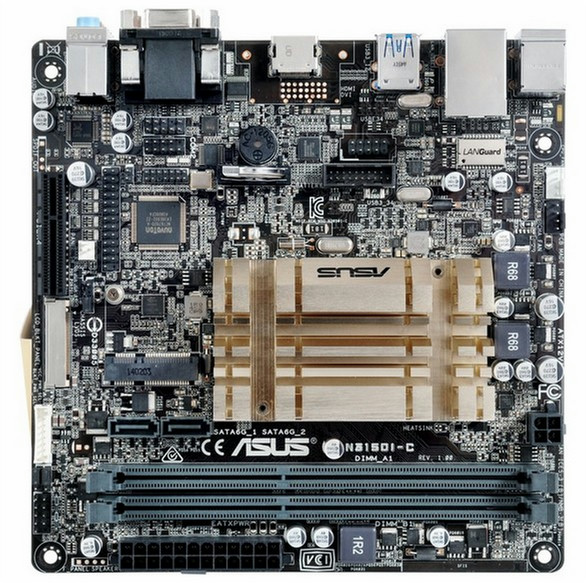

ASUS N3150I-C Mini ITX motherboard

ASUS N3150I-C Mini ITX motherboard

EAN: 4712900095012
MPN: 90MB0LP0-M0EAY0
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor Mini ITX
Motherboard chipset family Intel
Audio system High Definition Audio
Component for PC

Memory

Supported memory clock speeds 1066, 1600 MHz
Supported UDIMM clock speeds 1066, 1600 MHz
Non-ECC Y
Unbuffered memory Y
Supported memory types DDR3-SDRAM
Memory channels Dual
Memory slots type DIMM
Maximum UDIMM memory 8 GB
Number of memory slots 2

BIOS

BIOS memory size 64 MB
BIOS type UEFI AMI
ACPI version 5.0

Internal I/O

USB 2.0 connectors 1
ATX Power connector (24-pin) Y
TPM connector Y
USB 3.0 (3.1 Gen 1) connectors 1
Number of SATA III connectors 2
Peripheral (Molex) power connectors (4-pin) 1
CPU fan connector Y
Number of COM connectors 1
Chassis intrusion connector Y
Number of chassis fan connectors 1
Front panel audio connector Y

Graphics

Maximum graphics adapter memory 512 MB
On-board graphics adapter Y

Processor special features

Intel® Quick Sync Video Technology Y
Intel 64 Y
Intel® Identity Protection Technology (Intel® IPT) Y
Intel® Virtualization Technology (Intel® VT) VT-x
Intel VT-x with Extended Page Tables (EPT) Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y

Expansion slots

PCI Express x4 (Gen 2.x) slots 1

Packaging content

Drivers included Y

Back panel I/O ports

PS/2 ports quantity 2
Headphone outputs 1
Microphone in Y
COM ports quantity 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1

Processor

Processor cores 4
Processor frequency 1.6 GHz

Additionally

InTru™ 3D Technology Y
Intel HD Audio Technology Y
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 1
Intel Celeron Quad-Core N3150 SoC onboard Processors, 2 x U-DIMM, Max. 8GB, DDR3, 2 x SATA 6Gb/s, Realtek RTL8111H, 1 x Gigabit LAN, UEFI AMI BIOS Low-power, fanless mini-ITX motherboard for Intel Celeron® SoC N3150 processors, with 5X Protection and HDMI/D-Sub/LVDS support
- Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
- USB 3.0 BOOST (UASP Support):170% faster transfer speeds than traditional USB 3.0
- AI Suite 3:One-stop access to innovative ASUS features
- Fan Xpert:Dedicated CPU and case fan controls
- New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added

Proven quality. Enduring trust.
Strict compatibility and validation

We are the world's biggest motherboard manufacturer, and renowned our design thinking that revolves around users – just like you. Our engineers employ exacting standards to guarantee quality throughout the product's life, choosing the finest components for real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and undergo a minimum of 7,000 hours of strict validation. That gives you the peace of mind of knowing that ASUS motherboards are fit for all environments and applications. To build your PC with the best foundations, build it with an ASUS motherboard.

ASUS 5X Protection
Hardware safeguards to ensure long-term durability

Our be-the-best ethos underscores the choice of every single component that goes into your ASUS motherboard. We focus relentlessly on quality to ensure long-term system reliability and performance.

LANGuard for advanced LAN protection
ASUS LANGuard socket has advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, while surge-protected and electrostatically-guarded components (ESD Guards) protect your motherboard from lightning strikes and static electricity.

Enhanced DRAM overcurrent protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device.

5K-hr solid-state capacitors that last 2.5X longer
Solid-state capacitors are able to withstand extreme temperatures of up to 105°C for as long as 5,000 hours — that's two-and-a-half (2.5X) times longer than traditional capacitors. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.

Stainless-steel back I/O that lasts 3X longer
ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels.

ESD Guards for protection from electrostatic discharge
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

Proven compatibility

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.

Top-to-bottom reliability

Our motherboards have superb endurance. We verify this by subjecting every board to over 7,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust — with reliability that surpasses industry standards.

Extensive testing for extreme reliability, compatibility and safety
Each motherboard is subjected to extended reliability testing under heavy load conditions, from the transportation to daily operations, to make sure they are delivered to you in perfect condition. Trials include temperature and humidity, burn-in, power on/off, power consumption, insertion and thermal-shock testing among many others. Every certified-compatible component puts through an up to 24-hour aging test to ensure trouble-free operation every day – no matter what you fit or attach and no matter what you do!

Active quiet and cool with Fan Xpert

ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
