Performance
| Motherboard form factor |
ATX |
Other features
| Controller interface type |
2 x UltraDMA 133/100/66/33 |
Memory
| Maximum internal memory |
3 GB |
Expansion slots
| Expansion slots |
1 x AGP(1.5V), 5 x PCI |
Networking
| Networking features |
MCP integrated NVIDIA MAC + Realtek 8201BL PHY |
A7N8X-X provides a revolutionary audio/video experience.

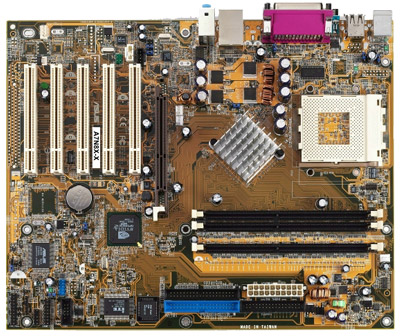

The ASUS A7N8X-X Series has come out with another winner to offer incredible value. The A7N8X-X, using the nForce2 400 chipset, is ready for the newest Athlon XP processor on 400Mhz FSB.
Introduction
The ASUS A7N8X-X Series has come out with another winner to offer incredible value. The A7N8X-X, using the nForce2 400 chipset, is ready for the newest Athlon XP processor on 400Mhz FSB. Other industry-leading features include AGP 8x graphics interface, DDR400 memory, onboard 6-channel audio and a whole lot more.
400 MHz FSB Athlon XP CPU Support
A7N8X-X supports 400 MHz FSB Athlon XP which provides exceptional performance for 3D gaming, digital media, office productivity and
AGP 8X Technology
AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s and twice as fast as AGP4X.
DDR400 (PC3200) Support
DDR400 (PC3200), the fastest DDR memory standard, supports bandwidth up to 3.2GB/s to provide enhanced system performance.
ASUS C.O.P (CPU Overheating Protection)
ASUS C.O.P (CPU Overheating Protection) is a hardware protection circuit that automatically shuts down the system power before temperatures go high enough to permanently damage your CPU.
6-Channel Audio
The A7N8X uses an onboard Realtek® ALC650 audio CODEC that lets you enjoy high-quality 6-channel audio without having to buy advanced sound cards.
USB 2.0 Support
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480MB/s, for easy connectivity and ultra-fast data transfers.
ASUS Q-Fan Technology
Constant, high-pitched noise generated from heatsink fans are a thing of the past thanks to ASUS Q-Fan™. The ASUS A7N8X with Q-Fan™ technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation.
ASUS Reliability
All ASUS motherboards are designed and tested to meet the highest quality standards. Responsive customer support and frequent BIOS and driver updates ensure the fastest, most reliable performance. All ASUS motherboards are backed by a 3-year limited warranty.
