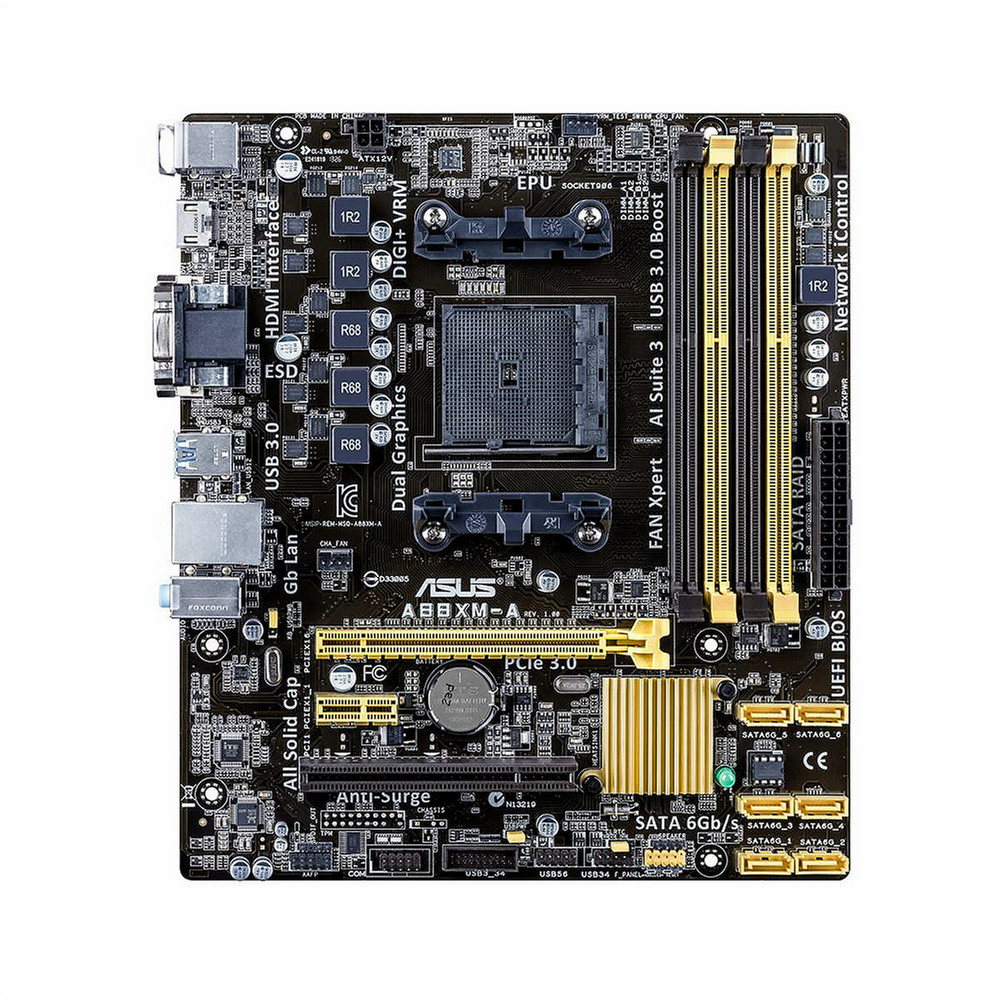

ASUS A88XM-A AMD A88X Socket FM2+ Micro ATX

AMD Socket FM2+, AMD A55 FCH, 4 x DIMM DDR3 2133/1866/1600/1333/1066 MHz, Max. 64GB, 1920 x 1080/2560 x 1600/4096 x 2160, USB 2.0/3.0, HDMI, UEFI BIOS <b>FM2+ socketed motherboard features high-endurance 5X Protection and new UEFI BIOS on the A88X chipset</b>
- ASUS 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
- Network iControl - Real-time network bandwidth management

<b>ASUS 5X Protection</b>
<b>All-round protection provides the best quality, reliability, and durability</b>
ASUS motherboards guard your PC with 5X Protection. We use quality components like DIGI+ VRM digital power design for precise APU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.

<b>New UEFI BIOS – friendlier and more intuitive</b>
<b>Exclusive EZ Mode adds useful info to become even easier</b>
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, D.O.C.P profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

<b>USB 3.0 Boost (UASP Support)</b>
<b>170% faster transfer speeds than traditional USB 3.0</b>
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

- World’s 1st USB 3.0 UASP support – instantly 170% faster.
- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.
- Simple plug and boost – auto detection design ensures best performance.

<b>Q-Slot</b>
<b>Effortless PCI Express component removal</b>
Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you don’t have to struggle with installing or removing even the biggest graphics cards.

<b>ASUS Boot Setting</b>
<b>Multiple startup options</b>
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

<b>AI Suite 3</b>
<b>One-stop access to innovative ASUS features</b>
ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

<b>AMD® Dual Graphics Technology</b>
AMD Radeon™ Dual Graphics is an exclusive technology only available to AMD platforms. It allows AMD APUs and selected AMD Radeon™ HD 6000 series graphics cards to work together, delivering an unrivalled 3D gaming graphics quality and performance. By combining both the discrete and integrated graphics processors, gamers can now enjoy faster and smoother frame rates on any latest gaming titles.

<b>AMD® A-series Accelerated Processor with AMD Radeon™ HD 7000/8000 Series Graphics</b>
This motherboard supports AMD® A-series Accelerated Processor with AMD Radeon™ HD 7000/8000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s

<b>AMD® A88X FCH(Bolton D4)</b>
AMD® A88X FCH (Bolton D4) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 graphics. It natively supports 8 x SATA 6Gb/s ports and 4 x USB 3.0 Ports.

<b>GreenASUS</b>
Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.
