Performance
Motherboard form factor |
ATX |
Motherboard chipset family |
Intel |
Intel Extreme Memory Profile (XMP) |
Y |
Component for |
PC |
Memory
Supported memory clock speeds |
2133 MHz |
Non-ECC |
Y |
Unbuffered memory |
Y |
Supported memory types |
DDR4-SDRAM |
Memory slots type |
DIMM |
Number of memory slots |
4 |
Maximum internal memory |
64 GB |
BIOS
BIOS memory size |
16 MB |
BIOS type |
UEFI AMI |
Clear CMOS jumper |
Y |
ACPI version |
5.0 |
Internal I/O
USB 2.0 connectors |
1 |
S/PDIF out connector |
Y |
ATX Power connector (24-pin) |
Y |
USB 3.0 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
6 |
EPS power connector (8-pin) |
Y |
CPU fan connector |
Y |
Number of COM connectors |
1 |
Number of chassis fan connectors |
2 |
Number of EATX power connectors |
1 |
Front panel audio connector |
Y |
Number of M.2 (M) slots |
1 |
Back panel I/O ports
DVI-D ports quantity |
1 |
USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
PS/2 ports quantity |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
HDMI ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Expansion slots
PCI slots |
3 |
PCI Express x1 slots |
2 |
PCI Express x16 (Gen 3.x) slots |
2 |
Processor special features
Intel® Turbo Boost Technology |
2.0 |
Additionally
Chipset |
Intel B150 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

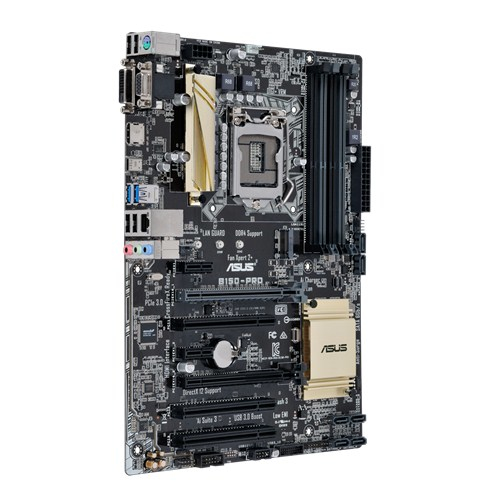

Intel B150, Socket 1151, USB 3.0, ATX
Dependable Stability
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Superb Performance
DDR4 Support
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Ultrafast Transfer Speed
M.2
With x2 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 16Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
Gaming Audio
Gear up! Win the battlefield
Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!
Easy PC DIY
Safe motherboard mounting
Component-free areas to minimize damage risk
Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!
Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!
Optimized Cooling
Fan Xpert 2+
Advanced fan controls
With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!1
One-Stop Control
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
