Processor
| Thermal Design Power (TDP) |
35, 65 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Sandy Bridge |
| Memory clock speeds supported by processor |
1066, 1333 MHz |
| Processor cache type |
Smart Cache |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| CPU multiplier (bus/core ratio) |
31 |
| Processor operating modes |
64-bit |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Stepping |
Q0 |
| Processor cores |
2 |
| PCI Express slots version |
2.0 |
| Processor frequency |
3.1 GHz |
| Tcase |
69.1 °C |
| ECC supported by processor |
N |
| Maximum internal memory supported by processor |
32 GB |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Number of processors installed |
1 |
| Processor cache |
3 MB |
| Processor lithography |
32 nm |
| FSB Parity |
N |
Software
| Operating system architecture |
64-bit |
Design
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
2 |
Graphics
| On-board graphics adapter ID |
0x102 |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
AMD Radeon HD 5450 |
| On-board graphics adapter base frequency |
850 MHz |
| Discrete graphics adapter memory |
512 GB |
| On-board graphics adapter dynamic frequency (max) |
1100 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
Processor special features
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
53422 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
Other features
| Graphics adapter family |
ATI |
| Networking features |
Gigabit Ethernet, WLAN |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI slots |
2 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Y |
Performance
| Audio output channels |
7.1 channels |
| Audio system |
ALC892 |
Memory
| Memory clock speed |
1333 MHz |
| Internal memory type |
DDR3-SDRAM |
| Memory slots |
4x DIMM |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
Storage
| Hard drive speed |
7200 RPM |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Optical drive
| Optical drive type |
DVD Super Multi |
Ports & interfaces
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |
| Chipset |
Intel H67 |
| Ethernet LAN connection |
Y |

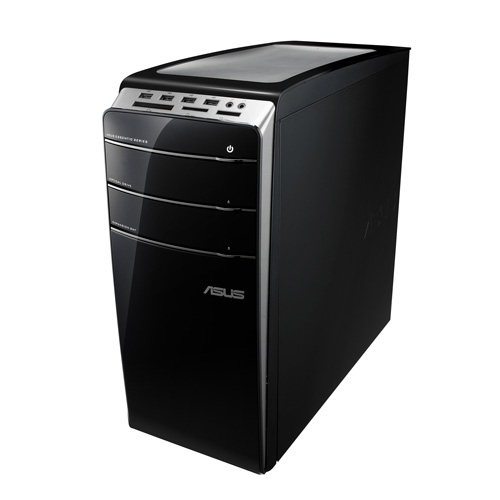

CM6650 - Intel Core i3-2100 (3M Cache, 3.10 GHz), 4GB DDR3, 500GB SATA HDD, ATI Radeon HD 5450 512MB, DVD Super-multi, Gigabit Ethernet, WiFi 802.11n (b/g), 300 W, Microsoft Windows 7 Home Premium 64-bit
A pleasing multi-media experience
The CM6650 is equipped with the all-new 2nd generation Intel® Core™ i5 CPU and ultra-fast DDR3 memory for rapid multitasking. The angled I/O bay up front makes accessing the four USB ports and the 16-in-1 card reader extra convenient, so hooking up peripherals and accessories is a snap.
High-definition Fun
Entertainment reaches new levels of realism via the Blu-ray Disc™* drive, along with amazing HD graphics. Your favorite Blu-ray movies, graphics-intensive applications, gaming and Internet surfing become ultra-sharp. An HDMI port connects handily with HD peripheral displays.
*Specifications vary depending on model.
Ultra-fast USB 3.0 and SATA 6Gb/s
Experience lightning speed data transfers at 4.8Gbps with USB 3.0 - the latest standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data up to 10X faster than USB 2.0 while remaining fully backward-compatible. The CG8350 also has native SATA 6Gb/s for up to twice the delivery throughput of regular SATA and improved scalability, so your data moves faster and more reliably.
Eco-Smart EPU
All ASUS desktops apply eco-conscious practices, materials and packaging. They utilize the world's first real-time PC power saving chip – EPU, or Energy Processing Unit. This energy-optimizing component regulates consumption to balance savings with max performance, and can be activated through an onboard switch or the ASUS AI Suite II interface.
The CM6650 maintains the ASUS commitment to creating environmentally-friendly and energy-efficient products through meticulous design and innovation, helping reduce their carbon footprint and mitigate environmental impact
