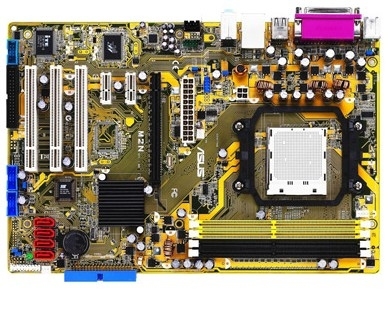

ASUS M2N Socket AM2 ATX motherboard

ASUS M2N Socket AM2 ATX motherboard

MPN: M2N
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor ATX
Audio system ADI High Definition Audio CODEC

BIOS

BIOS memory size 4 MB

Back panel I/O ports

Parallel ports quantity 1
PS/2 ports quantity 2
Headphone outputs 1
S/PDIF out port Y
Microphone in Y

Other features

Manageability features WOL PME, WOR PME, Chasis Intrusion, PXE
Controller (2nd) interface type Serial ATA II
Controller interface type Ultra DMA 133/100/66/33
Special features Q-FAN2\nQ-Connector\nASUS CrashFree BIOS3\nASUS EZ Flash2\nASUS Fanless Design\nASUS MyLogo

Processor

Maximum number of SMP processors 1

Internal I/O

USB 2.0 connectors 3
S/PDIF out connector Y
Number of SATA connectors 4
Number of Parallel ATA connectors 1
ATX Power connector (24-pin) Y
Power fan connector Y
Floppy disk drive connector Y
CD/AUX audio in Y
CPU fan connector Y
Number of COM connectors 1
Chassis intrusion connector Y
Number of chassis fan connectors 1
Front panel audio connector Y

Memory

Non-ECC Y
ECC Y
Number of memory slots 4
Maximum internal memory 8 GB

Expansion slots

Expansion slots 1x PCI Express x16\n2x PCI Express x1\n3x PCI 2.2

Networking

Networking features Gigabit Ethernet

Additionally

Ethernet LAN (RJ-45) ports quantity 1
Supports AMD Socket AM2 Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron
The M2N supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology

Dual-Core CPU
The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability.

Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.

AMD Cool 'n' Quiet! Technology
Supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.

Fanless Design - Provide a cool environment without all the baggage
Cooling fans, though a popular thermal solution, also come with noise and malfunction likelyhood. ASUS Motherboard's fansless concept is specifically created to provide a cool environment without all the baggage.

ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, Northbridge and Southbridge.
The heat sinks and strategic board layout are tailor made to dissipate heat in the most efficient manner.

ASUS Q-Fan 2
ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.

Gigbit LAN
The NVIDIA native Gigabit LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice.

6 Channel High Definition Audio
Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output.

Serial ATA 3Gb/s RAID
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard NVIDIA nForce® 430 MCP allows RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD configurations for four SATA connectors.

Max. 10 USB 2.0 ports supports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via an coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

ASUS Q-Connector
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

ASUS CrashFree BIOS 3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

ASUS EZ Flash 2
EZ Flash 2 is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
