Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Intel Extreme Memory Profile (XMP) |
Y |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000, 3100, 3200 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS button |
Y |
| ACPI version |
5.0a |
Internal I/O
| USB 2.0 connectors |
3 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
8 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
4 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Number of M.2 (M) slots |
1 |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
3 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
2 |
Processor special features
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel Z97 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

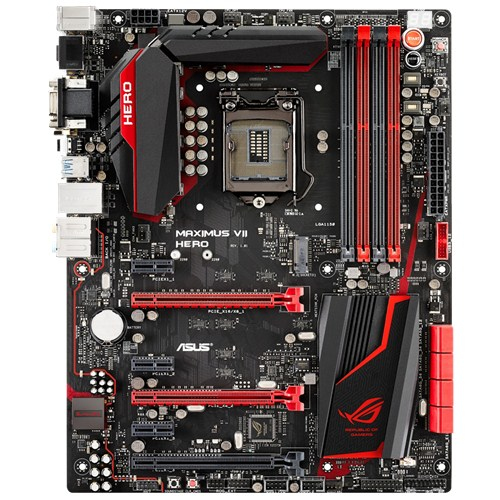

Intel Z97, 4xDIMM, DDR3, USB 3.0, HDMI, ATX
More throughput, less CPU usage and great gaming experiences!
Maximus VII Hero features the very latest Intel® Ethernet for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!
Precision-engineered audio that's as great as a dedicated sound card
ROG knows the importance of flawless audio – pristine effects and full-range soundtracks make the game. That's why we invest substantial engineering resources to perfect onboard audio. The result is SupremeFX. Cutting-edge isolation technologies minimize electromagnetic interference (EMI) and exceptionally premium components deliver best-in-class audio that's as great as a dedicated soundcard. But we never rest on our laurels, which is why SupremeFX 2014 has been refined even further for Maximus VII motherboards. That means even finer components and superbly clever software innovations for gaming and multimedia experiences beyond compare!
Your keyboard, instantly upgraded!
Fancy a free keyboard upgrade? That's what KeyBot gives you — instantly. Just plug your existing keyboard into the dedicated USB socket to activate the exclusive KeyBot microprocessor on the Maximus VII Hero. Use the easy-to-use utility to assign macros to function keys F1-F10, launch any application with a single press or control multimedia playback.
Acclaimed by world media as the most-intuitive UEFI BIOS!
The smoothest mouse-controlled graphical UEFI BIOS has been upgraded to deliver faster setup and easier functions, with an even more appealing design for better overclocking and DIY experiences. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
All-round protection provides the best quality, reliability and durability
Dynamically unleash your RAM – 20X faster than SSD!
With RAMDisk you can turn system memory into superfast temporary storage. Put large files, such as game maps, into RAMDisk and watch loading times fly — you'll never again wait to play. The improved 2014 edition of RAMDisk dynamically allocates memory, so unused RAM is released back to the system when it's needed. You'll even enjoy the bonus of protecting your SSD drives, as RAMDisk reduces excessive reads and writes that can reduce lifespan! Last but not least, the junction function serves as quick links between files and RAM storage. All files are automatically saved and restored to their specific locations on hard drives when you turn your PC off, then go back to RAM when you power on again.
