Performance
| Motherboard form factor |
ATX |
| Motherboard southbridge |
Intel ICH7 |
| Motherboard chipset family |
Intel |
| Component for |
PC |
Memory
| Supported memory clock speeds |
667, 800, 1066 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR2-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS type |
AMI |
| ACPI version |
2.0 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
4 |
| Number of Parallel ATA connectors |
1 |
| PCI Express power connectors (6-pin) |
3 |
| Number of SATA II connectors |
4 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Graphics
| Graphics adapter family |
Intel |
Processor
| Processor system buses supported |
800, 1066, 1333 MHz |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| COM ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel G41 |
| Количество слотов PCI Express |
3 |
| Graphics |
GMA X4500 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

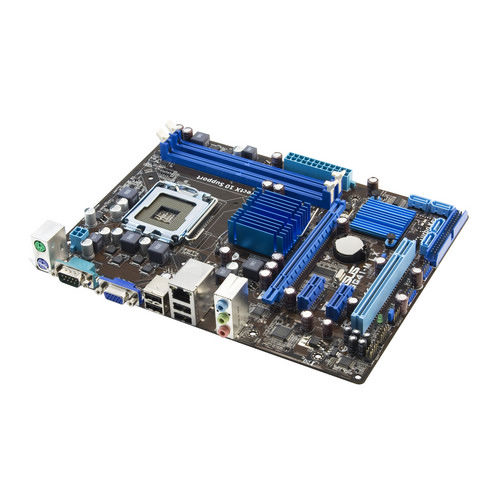

P5G41-M LX, Intel G41/ICH7 DDR2 1066, PCI-E x16, 2 x PCI-E x1
LGA775 Intel Core 2 Processor Ready
This motherboard supports Intel LGA775 Core 2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel CPUs in the 45nm manufacturing process.
Intel IT Director Technology
Intel IT Director is a reactive software product that monitors security,data protection and health of a PC or network of PCs. It includes a centrally monitored dashboard for overseeing a network of wired or wireless PCs within a Local Area Network.
Turbo Key
ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After you easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button.
MyLogo 2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
ASUS Q-Fan
ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.
Intel G41 Chipset
The Intel G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs. It is embeded with the next-generation Intel Graphics Media Acceleratior X4500. The Intel G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel Fast Memory Access technology the significantly optimized the use of available memory bandwith and reduces the latency of the memory accesses.
ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file.
EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.
High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
