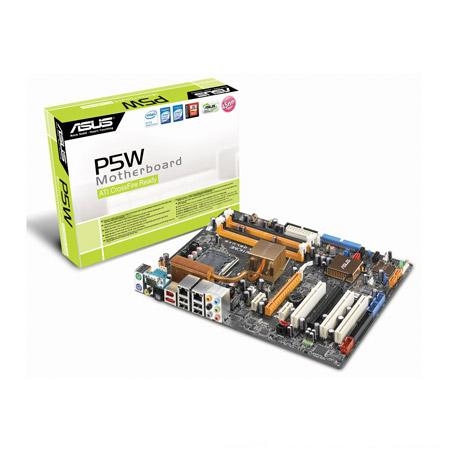

ASUS P5W Socket T (LGA 775) ATX motherboard

P5W - Sockel 775, Intel 975X +Intel ICH7R 1333/1066/800MHz, Dual-channel DDR2 800/667/ 533 max 8GB, 2 x PCI-E x 16 / 2 x PCI-E x 1/ 3 x PCI, Dual Gigabit LAN Digital Home.
The rise of digital home is just like a tsunami that is poinsed to take over the PC industry. To enjoy the digitalized convinience, you need the ASUS Digital Home series motherboard, a system that is designed solely for this purpose.

P5W.
ASUS P5W is specially designed for Gamers, Personal Workstation, SoHo, high-end and multi-tasking PC users.
The Intel 975X is Intel most high-end desktop chipset designed to support Intel next generation CPU, ATI CrossFire Graphics, maximum 8GB dual-channel DDR2 800/667/533 architecture, 1333/1066/800 FSB (front-side-bus). Easily build an entertainment PC or create a multimedia environment with its exceptionally high bandwidth. Together with the Serial ATA ports enabled through the SATA 3Gb/s RAID controller integrated in the ICH7R Southbridge, the Intel 975X satisfies multi-task processing and data security.

Industry Standard.

- LGA775 Intel® Quad-core Processor Ready.
This motherboard supports the latest Intel® Quad-core processors in LGA775 package. It´s excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world.

- Intel LGA775 Pentium 4 CPU.
This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800 MHz FSB, Hyper-Threading Technology, Intel´s LGA775 Pentium 4 is one of the fastest desktop processors to date.

- Intel® 65nm Dual-Core CPU support.
This motherboard supports Intel Pentium D/Pentium 4/Celeron dual-core processors built on the 65-nanometer (nm) process technology with copper interconnect.

- Intel® MPT (Intel® Memory Pipeline Technology)
The Intel® Memory Pipeline Technology (Intel MPT) delivers additional system-level performance by optimizing memory access between CPU and system memory, and allows increased performance at standard operating specifications.

- ATI CrossFire Technology.
ATI´s CrossFire boosts image quality along with rendering speed, eliminating the need to crank down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire.

Digital Home features.

- ASUS EZ-Backup™
Others guarantee your hard-drive, EZ-Backup guarantees your data on the hard-drive.
No driver, no configuration, just plug and play RAID to backup your data instantaneously. Exclusive to ASUS EZ-Backup™, users can utilize SATA2 technology to arrange RAID1 (default) or RAID0 system without BIOS or any other setup. EZ-Backup™ is ideal for anyone who wishes to secure the data on the hard-drive but doesn´t want the hassle of complicated software configuration. EZ-Backup™ looks after your data for you.

- ASUS Q-Connector.
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

Advanced Thermal Design.

ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, VGA, Northbridge and Southbridge.

- Stack Cool 2.
Stack Cool 2 is a fan-less and zero-noise cooling solution offered exclusively by ASUS. It effectively transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation.

- 8 Phase Power Design.
ASUS 8-Phase Power Design keeps CPU and power module away from suffering risk of high power stress, which makes CPU lifetime much longer and system more stable. Furthermore, It provides high efficiency operation to generate less heat than conventional power solutions and consequently achieve cool system environment. With this strong power pump, this motherboard is made for overclocking.

- Fanless Design: Heat-pipe Thermal solution.
Cooling fans, though a popular thermal solution, also come with noise and malfunction likelyhood. ASUS Motherboard´s fansless concept is specifically created to provide a cool environment without all the baggage.
The heat pipe, heat sinks and strategic board layout were tailor made to dissipate heat in the most efficient manner.

- ASUS two-slot thermal design (ASUS exclusive).
ASUS exclusive two-slot thermal design.
ASUS two-slot thermal design provides better air-flow and lower VGA cards temperature than other brans´ one-slot design, which also ensures better system stability and longer component life cycle.

Maximizing gaming performance.

- DDR2 800 Support.
To attain top performance, ASUS engineers successfully unleashed the true potential of DDR2 memory. Native DDR2 800 maximizes system performance by eliminating the bottleneck when overclocking both the CPU and memory, providing great performance for 3D graphics and other memory demanding applications.

- ASUS Hyper Path3.
Data transfers within the system are made possible by various mechanisms that synchronize the sending and receiving of commends among components. Unfortunately, these mechanisms cause data transfer delays known as latency time. This unique feature significantly shortens latency time during data transfers, allowing users to experience the real power of their computers.

- AI NOS™.
Applications such as 3D games and video editing demand a huge chunk of system resource.
Inject "nitrous oxide" into your CPU! The patented AI NOS™ (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your unending need for speeds.

- PEG Link.
This latest technology, PEG (PCI Express Graphics) Link Mode, is a unique feature that enables users to boost graphics card performance for superior video quality.
PEG Link allows users to raise GPU and VGA memory throughput via the motherboard BIOS the same way system bus and memory bus are tweaked. PEG Link Mode enables powerful video performance on DX8 and DX9 applications. ASUS engineers carefully fine-tuned the parameters for every single PCI-Express card to provide system stability during high-speed graphics operation.

- Precision Tweaker.
Precision Tweaker is designed for serious overclockers. It offers ways to raise system performance inch-by-inch and step-by-step to achieve maximum performance! This is about getting the most out of your machine, and taking pride in your customized computer. Precision Tweaker provides overclocking options for all major parts of the system: CPU, Memory, PCI-Express, and Front Side Bus.
vDIMM.
Take control of how much power is going into the memory modules. ASUS gives you 12-step voltage control to the DIMM.
vCore.
Find out "exactly" how much power your CPU needs. Fine-tune it with 0.0125 volts at a time!
PCI-Express x16 Frequency.
Explore the frequency options of your PCI-Express x16 graphics card.
SFS.
SFS (Stepless Frequency Selection) allows FSB tuning from 200MHz up to 400MHz at 1MHz increments.

Other ASUS Special Features.

- Dolby Master Studio.
A person who truly knows good entertainment appreciates good acoustic presence. AI Lifestyle Series motherboards offer 8-channel audio output and sound spec higher than that of DVD. Enjoy true home theatre experience with the supreme Dolby Master Studio and hear your movies in 7.1 surround sound. With the P5W DH Deluxe , appreciate the quality of sound, and indulge your sense of hearing.
- Dolby Prologic IIx -Dolby Virtual speaker.
- Dolby Headphone -Dolby Digital Live.

- CrashFree BIOS 3.
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

- EZ-Flash2.
EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch the utility and update the BIOS without entering the OS. Update your BIOS easily without preparing a bootable diskette or using an OS-based flash utility.

- SATA on the Go.
The motherboard supports Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.

- Dual Gigabit LAN.
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency. No more bottleneck to handle large amounts of data such as video, audio, and voice.

- IEEE 1394a.
IEEE 1394a interface provides high speed digital interface for audio / video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.

- Compliance with the RoHS Directive.
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.

- S/PDIF-out on Back I/O Port.
This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
