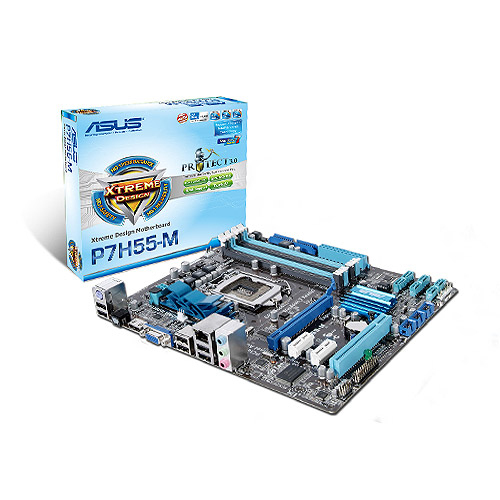

ASUS P7H55-M Socket H (LGA 1156) uATX motherboard

ASUS P7H55-M Socket H (LGA 1156) uATX motherboard

MPN: 90-MIBBK3-G0EAY0KZ
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

BIOS

BIOS memory size 64 MB
BIOS type AMI
ACPI version 2.0

Other features

Manageability features WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Controller (2nd) interface type VIA VT6415 PATA
Controller interface type Intel H55 Express

Internal I/O

USB 2.0 connectors 3
S/PDIF out connector Y
Number of SATA connectors 6
Number of Parallel ATA connectors 1
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of COM connectors 1
Chassis intrusion connector Y
Number of chassis fan connectors 1
Number of EATX power connectors 1
Front panel audio connector Y

Memory

Non-ECC Y
Number of memory slots 4
Maximum internal memory 16 GB

Graphics

On-board graphics adapter Y

Expansion slots

PCI slots 1
PCI Express x16 slots 1
PCI Express x1 slots 2

Packaging content

Drivers included Y

Performance

Audio system Realtek ALC887

Back panel I/O ports

PS/2 ports quantity 1
Headphone outputs 1
S/PDIF out port Y
Microphone in Y
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1

Networking

Networking features Gigabit LAN

Additionally

Ethernet LAN (RJ-45) ports quantity 1
P7H55-M - Intel® Socket 1156, Intel® H55 Express, 4 x DIMM, Max. 16 GB, DDR3 2200/2133/1866/1800/1600/1333/1066 Non-ECC, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1 (2.5GT/s, gray slots), 1 x PCI, Multi-VGA out, 6 xSATA 3.0 Gb/s, 1 xUltraDMA 133/100, Gigabit LAN, Realtek® ALC887 8-Ch., uATX LGA1156 Intel® Lynnfield/Clarkdale Processor Ready
This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel® Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.

PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

Intel H55
The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel Core™ i5 6 Series, Core™ i3 5 Series and Pentium® CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance!

HDMI Support
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment
High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through through a single cable. Supporting HDCP copy protection such as Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.

Dual-Channel DDR3 2200(O.C.) / 2133 / 2000/ 1866 / 1800/ 1600/ 1333/ 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C.) / 2133 / 2000/ 1866 / 1800/ 1600/ 1333/ 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

ASUS TurboV
Easy, Real-Time O.C. Tunings
Feel the adrenaline rush of real-time O.C. - now a reality with the ASUS TurboV. This easy O.C. tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.

GPU Boost
Instant iGPU Level Up!
GPU Boost overclocks the integrated GPU in real time for the best graphics performance. User-friendly UI facilitates flexible frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades.

Turbo Key
Touch-n-Boost!
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!

ASUS Express Gate
0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®.

ASUS EPU
System Level Energy Saving
The new ASUS EPU—the world’s first power saving engine, has been upgraded to a new 4 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card/ integrated GPU, hard drives and CPU cooler / system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking—helping save power and money.

ASUS 4+2 Phase Power Design
Longer Life & Higher Efficiency!
Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes.

ASUS Fanless Design - Heatsink solution
The crystal-shaped heatsink features 0-dB thermal solution that offers users a noiseless PC environment. Not only the beautiful shape upgrades the visual enjoyment for motherboard users, but also the heatsink design lowers the temperature of the chipset and power phase area through high efficient heat-exchange. Combined with usability and aesthetics, the ASUS crystal-shaped heatsink will give users an extremely silent and cooling experience with the elegant appearance!

8-channel Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology.

EZ-Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.

CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

Gigabit Lan supportv
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
