Other features
| Manageability features |
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Front panel audio connector |
Y |
Memory
| Non-ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 slots |
2 |
Performance
| Audio system |
Realtek ALC887 |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| Headphone outputs |
3 |
| Digital audio optical out |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

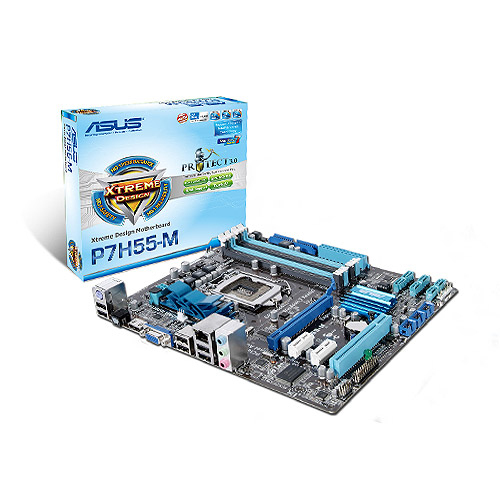

P7H55-M - 1156, DDR3, Intel H55. uATX, Ethernet
LGA1156 Intel Lynnfield/Clarkdale Processor Ready
This motherboard supports the latest Intel Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.
Intel H55
The Intel H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel Core i7/ Core i5/Core i3/ Pentium Processors. Intel H55 chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel Core i5 6 Series, Core i3 5 Series and Pentium CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance!
PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Dual-Channel DDR3 2200(O.C.) / 2133 / 2000/ 1866 / 1800/ 1600/ 1333/ 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C.) / 2133 / 2000/ 1866 / 1800/ 1600/ 1333/ 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
