Performance
| Motherboard form factor |
Mini ITX |
| Overclocking features |
GPU Boost |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC892 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Supported memory module capacities |
1GB, 2GB, 4GB |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
32 MB |
| BIOS type |
UEFI |
| Clear CMOS jumper |
Y |
| ACPI version |
2.0a |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
1748 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Packaging content
| Trial software |
Antivirus |
| Drivers included |
Y |
| Quick installation guide |
Y |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express slots version |
2.0 |
Other features
| Internal memory type |
SO-DIMM |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| Headphone outputs |
3 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel H67 |
| Graphics |
HD Graphics |
| Ethernet LAN (RJ-45) ports quantity |
1 |

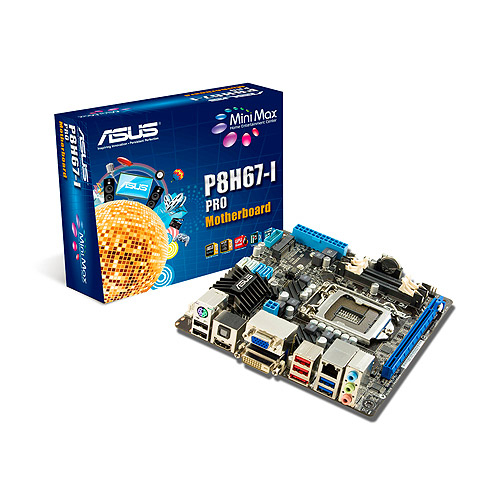

P8H67-I PRO, Intel H67, Intel LGA1155, 2 x SO-DIMM DDR3, 2 x SATA 6Gbps / 2 x SATA 3Gbps / 1 x eSATA 3Gbps, 1 x PCIe 2.0 x16, Gigabit Lan, 8ch. HDA, 4 x USB3.0/6 x USB2.0, mini ITX
Onboard GPU boost plus multiple SATA 6Gb/s for smooth home entertainment on H67
- GPU Boost - Go to the Limit with iGPU Level Up
- MemOK! - Any Memory is A-OK!
- SATA6G / USB 3.0
- UEFI BIOS – Flexible and Easy BIOS Interface
- AI Suite II – One-Stop Access to Innovative ASUS Features
