Networking
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
| Networking features |
Gigabit Ethernet |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x16 slots |
2 |
Ports & interfaces
| VGA (D-Sub) ports quantity |
2 |
| Serial ports quantity |
2 |
Storage
| Hot-swap hard drive bays |
Y |
| Controller interface type |
AMD SP5100 |
| Number of hard drives supported |
4 |
Operational conditions
| Safety |
CE, EN55022, EEC |
| Electromagnetic emissions |
FCC, CE, EN |
Memory
| Maximum RDIMM memory |
256 GB |
| Maximum UDIMM memory |
64 GB |
| Supported RDIMM clock speeds |
1333, 1066, 800 MHz |
| Supported DIMM module capacities |
8GB, 4GB, 2GB, 1GB |
| Number of DIMM slots |
16 |
Graphics
| Maximum graphics adapter memory |
8 MB |
Processor
| Number of processors supported |
4 |
Additionally
| System bus data transfer rate |
6.4 GT/s |
| Graphics |
AST2050 |
| Chipset |
AMD SR5670 |

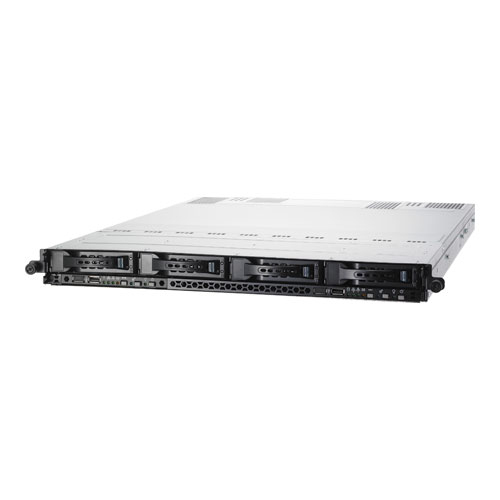

RS704DA-E6/PS4, 1U, 4 x G34 (LGA1944), AMD SR5670/AMD SP5100, 16 x DIMM 1333/1066/800MHz, 2 x PCI-E x16, 6 x SATA2 300MB/s, RAID 0/1, 4 x 3.5'' HDD H/s, Gigabit Ethernet, AST2050 8MB, 6 x USB 2.0, 1400W, 18kg, Silver
<b>Duo Nodes 1U Server with High Speed Interconnection for AMD G34 Solution</b>
The ASUS RS704DA-E6/PS4, with support of the latest AMD Opteron 6100 series processor, is a dual 2-way system capable of providing extreme performance for customers with 4-way, up to 48-core computing capabilities in a 1U environment. With a design that supports 4 hot swap 3.5” hot-swap HDD bays, users can enjoy exceptional space-savings while utilizing the normal form factor. In addition, the RS704DA-E6/PS4 has an Infiniband QDR onboard, delivering high speed interconnection for HPC applications.
<b>Duo Nodes in 1U with High Computing Density</b>
The RS704DA-E6/PS4 is designed with dual DP system in a 1U chassis, 16 DIMM slots and up to 256GB memory capacity per node to deliver high density computing. In this way, there will be up to 84 nodes or up to 2016 computing cores in a 42U cabinet, providing extreme computing density.
<b>Extreme System Power Efficiency</b>
The RS704DA-E6/PS4 is equipped with 1400W 80 plus (Gold) power supply module to improve power efficiency, reduce power loss and save power bill. Furthermore, the intelligent fan control and independent air flow in each node optimizes the system thermal solution.
<b>High Speed Interconnection for HPC</b>
Through a QFSP port at the rear panel, the RS704DA-E6/PS4 is able to deliver high speed interconnection (40Gbps) for HPC applications from a built-in Infiniband QDR chipset.
<b>Real-time and Out-of-band Server Management</b>
The optional ASMB4-iKVM module offers real-time web-based management and remote system control (KVM-over-IP) to the system from any local computer anywhere, anytime.
<b>Designed for Virtualization</b>
Virtualization provides central management, reduces power consumption, cost for cooling and management effort for users. The RS704DA-E6/PS4 is able to provide excellent virtualization applications with VMWare. The onboard vertical USB connector is designed for integrated hypervisor for easy deployment, allowing the full use of system resources and reducing TCO and IT expenses.
