Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Graphics
| Maximum graphics adapter memory |
16 MB |
Memory
| Supported UDIMM clock speeds |
1066, 1333 MHz |
| Number of DIMM slots |
32 |
| Supported memory types |
DDR3-SDRAM |
| Supported DIMM module capacities |
16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
| Supported RDIMM clock speeds |
800, 1066, 1333, 1600 MHz |
| Maximum UDIMM memory |
256 GB |
| Maximum RDIMM memory |
1024 GB |
| Maximum internal memory |
1024 GB |
Processor
| Number of processors supported |
4 |
| Intel Xeon series |
E5-4600 |
Expansion slots
| PCI Express x16 slots |
4 |
| PCI Express x8 slots |
2 |
Other features
| Graphics adapter family |
Aspeed |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| LAN controller |
Intel I350AM4 |
| Networking features |
Gigabit Ethernet |
Storage
| Supported hard disk drive sizes |
3.5 " |
| Supported storage drive interfaces |
SAS, Serial ATA II, Serial ATA III |
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
8 |
Additionally
| Chipset |
Intel C602 |
| Graphics |
AST2300 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

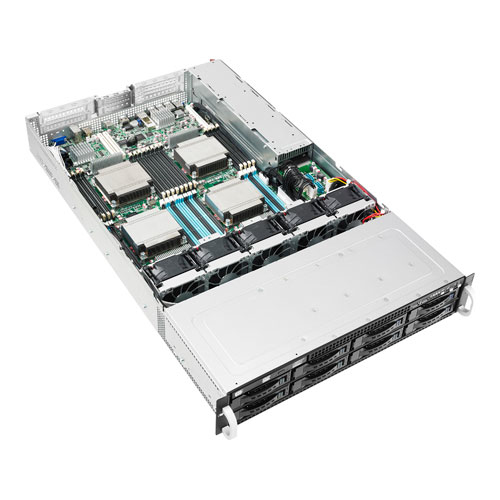

RS926-E7/RS8, 4x Socket 2011, Intel Xeon processor E5-4600 Series, Intel C602-A, 32x DIMM DDR3, Total 8 x 3.5" HDD Bays, 4x PCI-E x16, 2x PCI-E x8, Aspeed AST2300 with 16MB VRAM, 1x Intel i350-AM4, 2U
Outstanding computing with Quad CPUs and Dual GPUs
The RS926-E7/RS8 delivers outstanding performance with up to four new Intel® Xeon® E5-4600 processors, which together offer a max 32 computing cores in a 2U system. The 32 DDR3 DIMM slots support up to 1024GB (RDIMM) memory. Furthermore, support for two double-deck graphics cards provides extreme video processing capabilities.
High speed interconnection for HPC
To meet the demands of data centers and HPC applications, the RS926-E7/RS8 has a QFSP port at the rear panel to deliver high speed 56Gbps interconnection via the built-in InfiniBand™ FDR chipset.
Enhanced reliability, better efficiency, and improved serviceability
Quad Intel® Gigabit LAN ports optimize load balance and fault tolerance functions, while hot-swap hard drive trays enable easy maintenance and upgrades. In addition, the 1+1 redundant 1620W 80 PLUS Platinum power supplies provide up to 94% power efficiency, by that combining easy maintenance with significant cost savings, making the server both power-saving and easy to maintain.
Exclusive ASUS PIKE upgrade kit
To improve storage capacity, the RS926-E7/RS8 supports SATA and SAS hard drives to offer users integrated RAID Solution – PIKE for better data protection. The optional ASUS PIKE SAS2 6G upgrade kit provides a cost-effective storage interface upgrade, for more flexible storage options.
Quad LAN with Gigabit high performance
The quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions, which reduce data processing bottlenecks in virtualization environments by enhancing virtualized traffic.
Integrated server remote management
With the web GUI-based ASMB6-iKVM module, users can fully control the server with out-of-band management using the IPMI 2.0 standard, achieving 24/7 real time remote monitoring. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, power control, and asset supervision, all through a user-friendly interface.
