Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Intel Extreme Memory Profile (XMP) |
Y |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133, 2400, 2600, 2666, 2800, 2933, 3000, 3100, 3200, 3300 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Back panel I/O ports
| S/PDIF in port |
Y |
| DVI-D ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
2 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| EZ plug connector |
Y |
| Number of chassis fan connectors |
3 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Number of M.2 (M) slots |
1 |
| Number of SATA Express ports |
1 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
3 |
| PCI Express x1 (Gen 3.x) slots |
3 |
Additionally
| Chipset |
Intel Z170 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

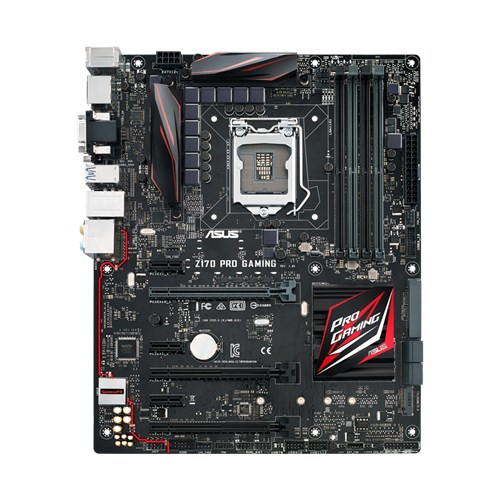

Intel Z170, 4 x DIMM, DDR4, USB 3.1, SATA 3, 128 Mb, ATX
FLAWLESS AUDIO THAT
MAKES YOU PART OF THE GAME!
SupremeFX audio technology achieves near-lossless audio quality and has multiple light effects to illuminate the exclusive red-line shielding, plus Sonic Radar II technology to locate battlefield enemies before they spot you!
SupremeFX
Shielded audio, superior sound
The ASUS-exclusive technology that produces near-lossless audio quality with a remarkable signal-to-noise ratio (SNR) of 115dB, so you enjoy every sound detail.
Sonic Radar II
Scan and detect to dominate!
Sonic Radar II displays a stealthy overlay that shows what your opponents and teammates are up to on the battlefield, all managed via a simple control panel and customizable game list. See the direction and origin of key in-game sounds, and practice your enemy-pinpointing skill, plus exclusive Audio Enhancement technology clarifies every last blast.
TOP-SPEED PROTECTED NETWORKING
Loaded with the best networking tech, including high-speed Intel® Gigabit Ethernet and ASUS-exclusive LANGuard and GameFirst III, your connections are faster and safer to stay ahead of the pack!
Intel Gigabit Ethernet
More throughput, less CPU usage and great gaming experiences
Featuring the very latest Intel Ethernet (I219-V) for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay.
LANGuard
Pumped-up throughput. Best surge protection
Signal-coupling technology and premium surface-mounting ensure a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components (ESD Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges.
GameFirst III
Banish lag, play smooth
Exclusive GameFirst III prioritizes game-related packets and allocates more bandwidth to games, eliminating laggy gameplay, streaming stutters and file-sharing slowdown — so you'll always be the frontrunner. Choose from Optimization, Game, Media Streaming or File Sharing presets and watch your network fly!
PERFORMANCE LEVEL UP
Packed with ASUS-exclusive Pro Clock technology, second-generation ASUS T-Topology, AI Suite 3 and RAMCache to unleash the full potential of your gaming performance.
Go Faster with PRO Clock technology
A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that extends overclocked base clock frequencies up to 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.
DDR4 overclocking strength in numbers
Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3400MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.
One-stop performance-optimization panel
AI Suite 3 is an exclusive ASUS dashboard-style control panel that lets you fine-tune almost every aspect of your Z170 Pro Gaming-based system for the best balance between performance, stability, efficiency and aesthetics — all via a simple and intuitive interface.
Award-winning BIOS design
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.
RAMCache
Speed your game loads
Uniquely-intelligent technology that effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache turns milliseconds into microseconds to boost game-load times to stratospheric levels!
GAMER'S GUARDIAN FOR REAL-WORLD PROTECTION
Motherboard self-protection with loads of brilliant defenses, including our unique smart DIY features. Individually they're tough, together they're unstoppable.
ESD Guards
2X-greater ESD protection for extended component lifespan
ASUS ESD Guards actively protect against sudden electrostatic discharge (ESD), meaning the components will last much longer — and you get protection that's up to twice as resilient as industry standards!
THE POWER OF INTEL!
Intel Z170 Express Chipset
Intel Z170 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z170 provides a maximum of ten USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel Z170 Express also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
