Video
| MPEG-4 frame rate |
30 fps |
| Motion JPEG frame rate |
30 fps |
Technical details
| Internal memory |
128 MB |
| Resolution |
720 x 576 pixels |
| Flash memory |
128 MB |
Networking
| Supported network protocols |
IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
High-density video encoder rack solution

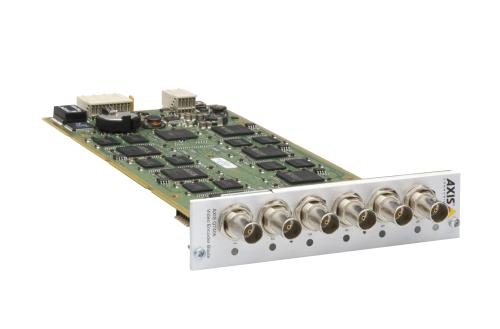

AXIS Q7406 Video Encoder Blade is a 6-channel blade for video encoder rack solutions, enabling large numbers of analog cameras to be integrated into an IP-based, high-density video surveillance system. When AXIS Q7406 blades are used with AXIS Q7900 Rack, up to 84 analog cameras can be supported in one 4U, 19-inch rack.
Reduced bandwidth and storage needs
AXIS Q7406 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.
Multiple, individually configurable video streams
AXIS Q7406 can deliver multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). This means that for each channel, several video streams can be configured with different compression formats, resolutions and frame rates for different needs.
Wide range of analog PTZ cameras supported
All Axis video encoders connect to analog pan/tilt/zoom (PTZ) cameras to allow for easy operation of these PTZ cameras across the IP network. Axis' open policy ensures simple and fast integration with most analog PTZ cameras on the market by including software drivers for more than 25 different analog cameras, including products from American Dynamics, Bosch, Canon, Panasonic, Pelco, Philips, Samsung, Sensormatic and Sony.
