Video
| Motion JPEG frame rate |
15 fps |
| MPEG-4 frame rate |
15 fps |
| Maximum frame rate |
15 fps |
| Maximum video resolution |
720 x 576 pixels |
Technical details
| Flash memory |
512 MB |
| Image settings |
Rotation, Privacy mask, Mirroring, Contrast, Compression, Color, Brightness |
| Internal memory |
2048 MB |
| PTZ control (Pan/Tilt/Zoom) |
Y |
Ports & interfaces
| BNC input ports |
16 |
| RS-422 ports |
4 |
| RS-485 ports |
4 |
| DC-in jack |
Y |
Networking
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Supported network protocols |
IPv4/v6, HTTP, HTTPS, IEEE 802.1X QoS 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Quality of Service (QoS) support |
Y |
| Power over Ethernet (PoE) |
Y |
Security
| Active tampering alarm |
Y |
| IP address filtering |
Y |
| Video motion detection |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Rotation |
270 ° |
M7010 Surveillance Kit consists of one AXIS M7010 Video Encoder and one AXIS Camera Station software with a 16-base license.
- High quality video
- Simultaneous H.264 and Motion JPEG
- Edge storage
- High resolution quad-view
- PTZ support
- Power over Ethernet
<b>Efficient 16-channel solution</b>

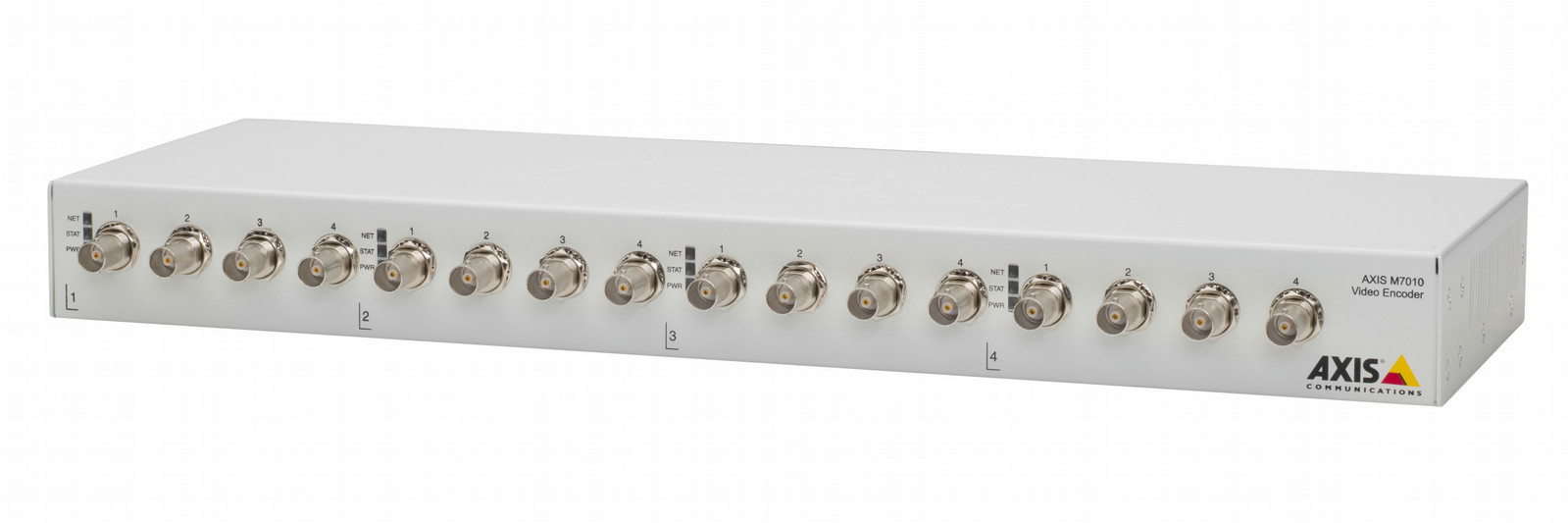

AXIS M7010 Video Encoder is an easy-to-use 16-channel video encoder with good video performance. It can simplify migration to network video without upgrading existing camera systems.
<b>Affordable, yet powerful</b>
AXIS M7010 provides edge storage through four microSDHC memory card slots. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras.
<b>The easy way to a smarter CCTV system</b>
AXIS M7010 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package.
<b>Reduced bandwidth and storage</b>
AXIS M7010 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at 15 frames per second in resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.
