Video
| Motion JPEG frame rate |
30 fps |
| MPEG-4 frame rate |
25 fps |
| Maximum frame rate |
30 fps |
| Maximum video resolution |
720 x 576 pixels |
Ports & interfaces
| I/O terminal ports |
1 |
| BNC input ports |
4 |
| DC-in jack |
Y |
| Line-out |
Y |
| RS-422 ports |
1 |
| RS-485 ports |
1 |
Networking
| Copper ethernet cabling technology |
1000BASE-TX |
| Wi-Fi |
N |
| Quality of Service (QoS) support |
Y |
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| RS-232 port |
1 |

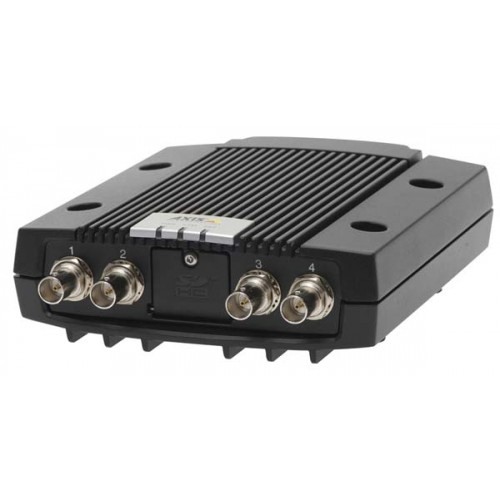

Q7424-R Video Encoder, Rugged design, Extended temperature range, SFP slot for fiber connection, Edge storage, AXIS Camera Application Platform, Power over Ethernet, H.264 and Motion JPEG streams
<b>Rugged video encoder for tough environments</b>
AXIS Q7424-R is a high performance 1-4 channel standalone solution that enables flexible migration of analog cameras into an IP-based video surveillance system in challenging conditions. AXIS Q7424-R features a rugged design optimized to withstand vibrations, shocks and extreme temperatures.
<b>Reduced bandwidth and storage needs</b>
AXIS Q7424-R offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.
Powerful and full-featured
Easy joystick control
<b>Read more: AXIS T8310</b>
AXIS Q7424-R supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes, using the built-in RS-422 and RS-485 serial port. The video encoder also includes edge storage through a built-in SD/SDHC memory card slot.
<b>Flexible network interface</b>
AXIS Q7424-R features an SFP slot for optional fiber connectivity, which gives the flexibility to connect the video encoder cost-effectively to the network over long distances.
<b>More features</b>
<b>Two‐way audio support</b>
Intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection.
Four configurable inputs/outputs for connections to external devices such as sensors and relays, enabling the system to receive and respond to alarms.
Open Application Programming Interface (API) for software integration, including VAPIX® from Axis Communications
Support for hosted video with One-Click Camera connection
